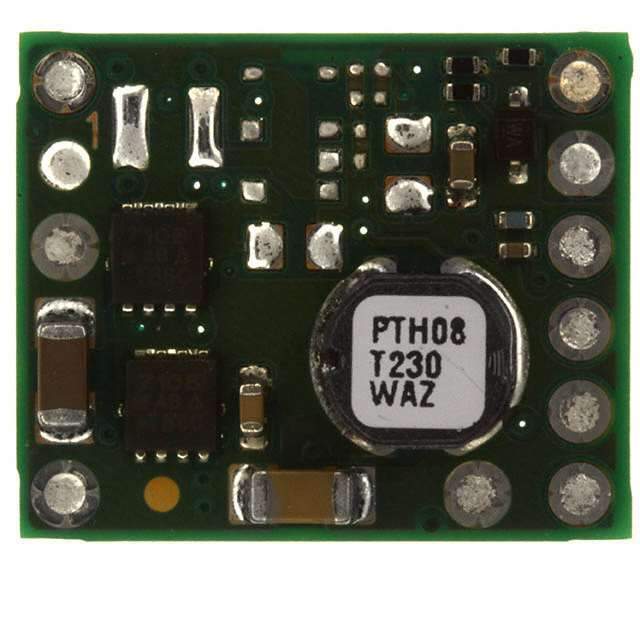

Product Overview: Texas Instruments PTH08T230WAZ

The PTH08T230WAZ from Texas Instruments is a high-performance, adjustable non-isolated power module designed for use in a variety of applications. This compact module delivers exceptional efficiency and flexibility, making it an ideal solution for powering the latest ICs and digital systems.

Key Features

• Wide Input Voltage Range: The PTH08T230WAZ operates with an input voltage range of 4.5V to 14V, accommodating a variety of power sources and ensuring compatibility with various system designs.
• Adjustable Output Voltage: The output voltage can be adjusted from 0.69V to 5.5V, allowing precise voltage regulation to meet the needs of sensitive electronic components.
• High Output Current: This power module is capable of delivering up to 10A of output current, providing ample power for even the most demanding applications.
• Efficiency: With an efficiency rating of up to 96%, the PTH08T230WAZ ensures minimal power loss and heat generation, thus improving system reliability and performance.
• Power Good Output: The module includes a 'power good' signal output, which provides a status indication to the system when the output voltage is within regulation.
• Thermal Performance: Enhanced thermal performance is achieved through the use of an integrated heat sink, which helps to dissipate heat effectively in challenging thermal environments.

Applications

The versatility of the PTH08T230WAZ makes it suitable for a wide range of applications, including:

• Telecommunications Equipment
• Networking Hardware
• Server and Storage Systems
• Industrial Equipment
• Test and Measurement Devices

Quality and Reliability

As with all Texas Instruments products, the PTH08T230WAZ is manufactured to the highest quality standards, ensuring reliability and performance in even the most demanding conditions. The module's robust design and integrated features make it a dependable choice for engineers and designers looking to simplify their power supply solutions.
