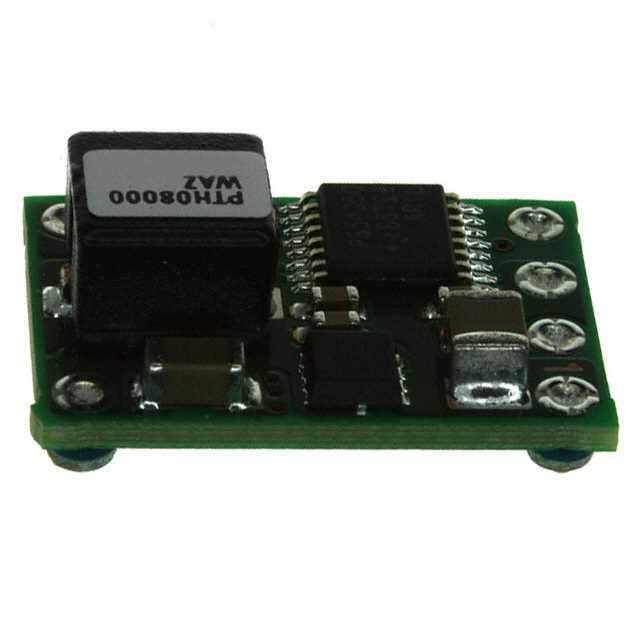

PTH08000WAZT

Name: PTH08000WAZT
Brand: Texas Instruments
SKU: 283835
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PTH08000WAZT
Manufacturer	Texas Instruments
Catalog	Power Supplies Board Mount DCDC Converters
Description	MODULE PIP 14VIN 2.25A ADJ SMD
Datasheet	PTH08000WAZT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount
Family	DC DC Converters
Manufacturer	Texas Instruments
Series	PTH08000W
Packaging	Reel(TR)
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	14V
Voltage - Output 1	0.9 ~ 5.5 V
Current - Output (Max)	2.25A
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, UVLO
Mounting Style	SMD/SMT
Package	6-SMD Module
Size / Dimension	0.75" L x 0.50" W x 0.36" H (19.1mm x 12.7mm x 9.1mm)
Operating Temperature Range	-40°C ~ 85°C
Efficiency	93.5%
Win Source Part Number	137897-PTH08000WAZT
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian PTH08000WAZT CAD Model

Alternative Products

Description

The PTH08000WAZT is a high-performance, low-cost product from Texas Instruments, a renowned global semiconductor company that designs and manufactures analog and embedded processing chips.

Output Voltages: 0.9V to 5.5V (adjustable)
Efficiency: Up to 96%
Input Voltage Range: 4.5V to 18V
Over-Temperature Protection: Yes
Under-Voltage Lockout: Yes
