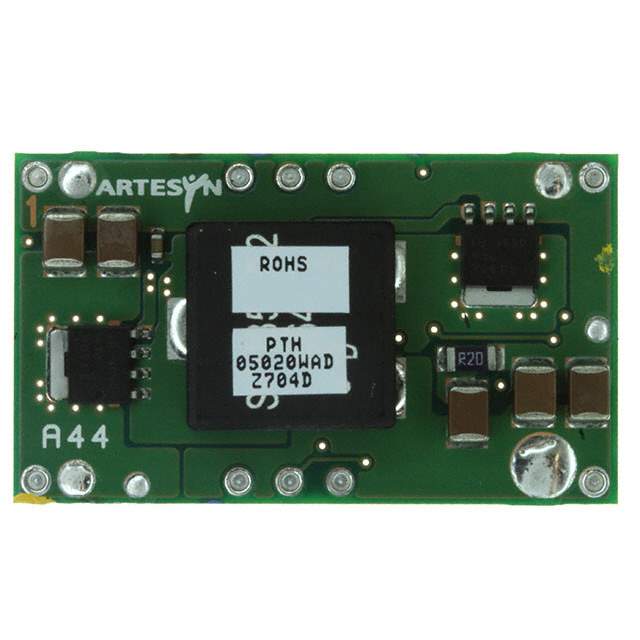

Introducing the PTH05020WAD from Texas Instruments

The PTH05020WAD is a highly efficient, non-isolated power module brought to you by the renowned electronics manufacturer, Texas Instruments (TI). This innovative module is part of TI's extensive range of power management solutions designed to cater to a broad spectrum of applications across various industries.

Exceptional Power Conversion Efficiency

At the heart of the PTH05020WAD is its ability to deliver exceptional power conversion efficiency. This module is capable of converting input voltages ranging from 4.5V to 5.5V, making it suitable for operations in standard 5V systems. With an impressive output voltage range of 0.8V to 3.6V, this device can supply up to 6A of output current, ensuring that even the most demanding devices are adequately powered.

Advanced Features for Optimal Performance

The PTH05020WAD comes packed with advanced features that make it a versatile choice for power supply designs. It boasts an adjustable output voltage, which allows for precise voltage regulation tailored to specific application needs. The module also includes an Auto-Track™ sequencing feature, which simplifies the task of supply voltage sequencing in multi-rail systems, a critical factor for powering digital ICs and microprocessors.

Compact and Reliable Design

Designed with a compact footprint, the PTH05020WAD is ideal for space-constrained applications. Its small size does not compromise its reliability or performance, offering excellent thermal performance and a robust design that meets the high standards expected from Texas Instruments products.

Easy Integration and Application Versatility

Integrating the PTH05020WAD into your design is straightforward, thanks to its through-hole package, which is compatible with standard soldering processes. This module is an excellent choice for a wide range of applications, including but not limited to telecommunications, computing, networking equipment, and industrial systems.

In summary, the PTH05020WAD from Texas Instruments is a powerful, efficient, and versatile power module that delivers high performance in a compact package. With its advanced features and reliable design, it stands out as a superior choice for designers looking to optimize their power management solutions.
