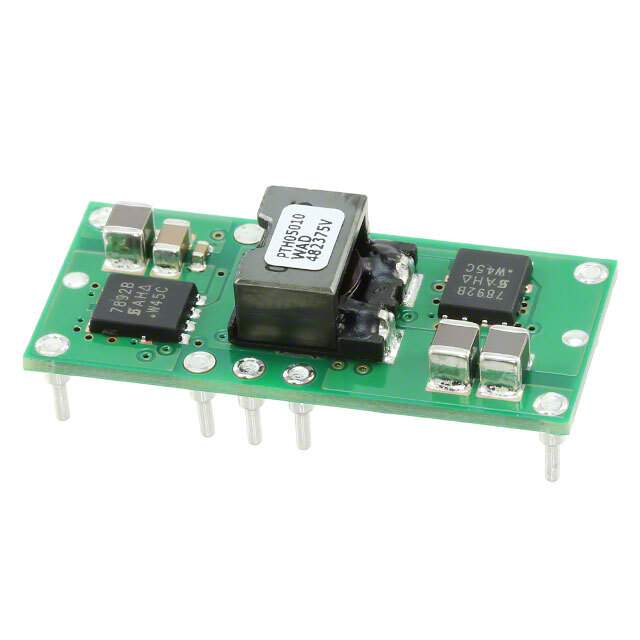

PTH05010WAD Real Image
Same model may have multiple batches, images only for reference.

PTH05010WAD

Part No PTH05010WAD
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description MODULE PIP ADJ 15A 5V T/H 10-DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Texas Instruments
Standard Package 25
Category Power Supplies - Board Mount
Family DC DC Converters
Series PTH05010W
Packaging Tray
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 0.8 ~ 3.6 V
Current - Output (Max) 15A
Applications ITE (Commercial)
Mounting Style Through Hole
Package 10-DIP Module
Size / Dimension 1.37" L x 0.62" W x 0.35" H (34.8mm x 15.7mm x 8.9mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 95%
Power (Watts) - Max 54W
Catalog PTH05010W Series
Win Source Part Number 062176-PTH05010WAD
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PTH05010WAD CAD Model

Description

The PTH05010WAD is an innovative, high-performance power module manufactured by the globally recognized company, Texas Instruments.

  • Rated Current: 6A
  • Input: 5V
  • Adjustable Output Voltage Range: 0.8V to 3.6V
  • Auto-Track Sequencing: Yes
  • Input Voltage Range: 4.5V to 5.5V
  • Maximum Output Current: 6A
  • Over-Current Protection: Yes
  • Over-Temperature Protection: Yes
