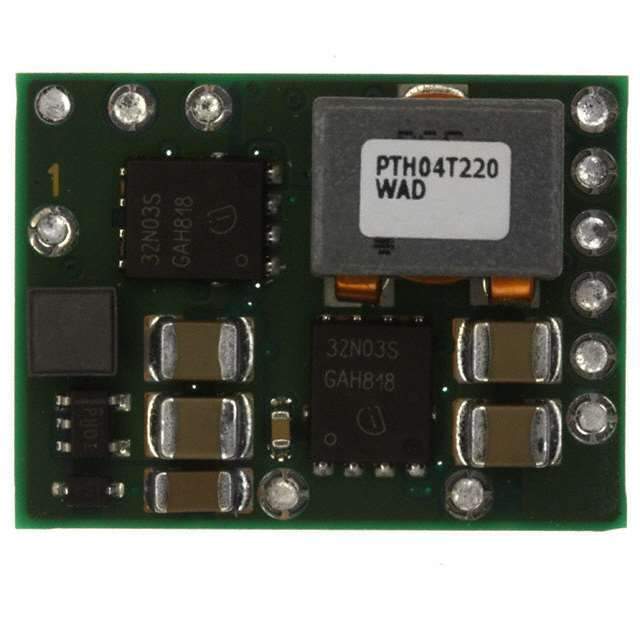

PTH04T220WAD

Name: PTH04T220WAD
Brand: Texas Instruments
SKU: 283805
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PTH04T220WAD
Manufacturer	Texas Instruments
Catalog	Power Supplies Board Mount DCDC Converters
Description	MODULE PIP 16A HORZ T/H 11-DIP
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Texas Instruments
Standard Package	42
Category	Power Supplies - Board Mount
Family	DC DC Converters
Series	PTH04T220W
Packaging	Tray
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	2.2V
Voltage - Input (Max)	5.5V
Voltage - Output 1	0.69 ~ 3.6 V
Current - Output (Max)	16A
Applications	ITE (Commercial)
Mounting Style	Through Hole
Package	11-DIP Module
Size / Dimension	1.00" L x 0.75" W x 0.34" H (25.4mm x 19.1mm x 8.6mm)
Operating Temperature Range	-40°C ~ 85°C
Efficiency	94%
Power (Watts) - Max	57.6W
Catalog	PTH04T220W Series
Win Source Part Number	082087-PTH04T220WAD
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian PTH04T220WAD CAD Model

Alternative Products

Description

The PTH04T220WAD is a cutting-edge, high-performance product from Texas Instruments, a leading global semiconductor company that designs and manufactures analog ICs and embedded processors.

Rated Current: 10-A
Input Voltage Range: 4.5V to 14V
Output Voltage Range: 0.69V to 5.5V
Efficiency: Up to 96% @ full load
Auto-Track Sequencing: Yes
Over-Current Protection: Yes
Over-Temperature Protection: Yes
Operating Temperature Range: -40°C to +85°C
