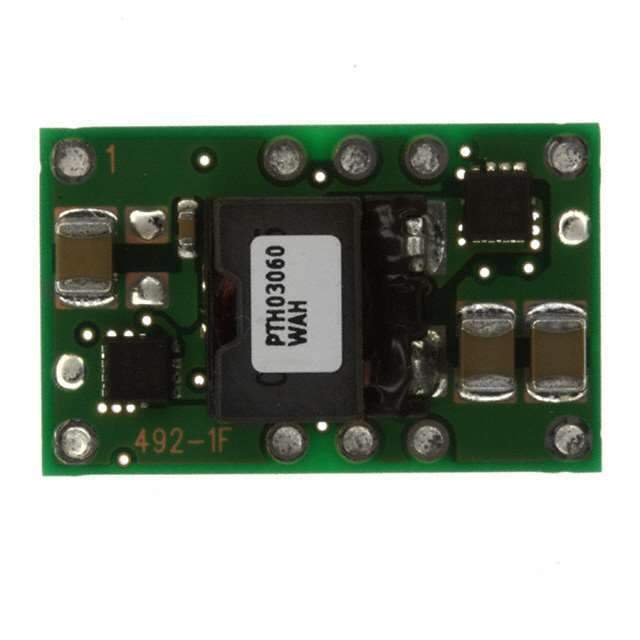

PTH03060WAH

Name: PTH03060WAH
Brand: Texas Instruments
SKU: 283797
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PTH03060WAH
Manufacturer	Texas Instruments
Catalog	Power Supplies Board Mount DCDC Converters
Description	MODULE PIP .8-2.5V 10A T/H 10DIP
Datasheet	PTH03060WAH Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount
Family	DC DC Converters
Manufacturer	Texas Instruments
Series	PTH03060W
Packaging	Tray
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	2.95V
Voltage - Input (Max)	3.65V
Voltage - Output 1	0.8 ~ 2.5 V
Current - Output (Max)	10A
Applications	ITE (Commercial)
Mounting Style	Through Hole
Package	10-DIP Module
Size / Dimension	1.00" L x 0.62" W x 0.35" H (25.4mm x 15.7mm x 8.9mm)
Operating Temperature Range	-40°C ~ 85°C
Efficiency	93%
Power (Watts) - Max	25W
Win Source Part Number	026940-PTH03060WAH
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian PTH03060WAH CAD Model

Alternative Products

Description

The PTH03060WAH is a high-performance, low-output voltage, non-isolated power module from Texas Instruments.

Output Current: Up to 10A
Adjustable Output Voltage Range: 0.9V to 5.5V
Typical Efficiency: 96% @ half load
Wide-Input Voltage Range: 3V to 14V
Auto-Track Sequencing: Yes
Over-Temperature Protection: Yes
Under-Voltage Lockout: Yes
Output Over-Current Protection: Yes
