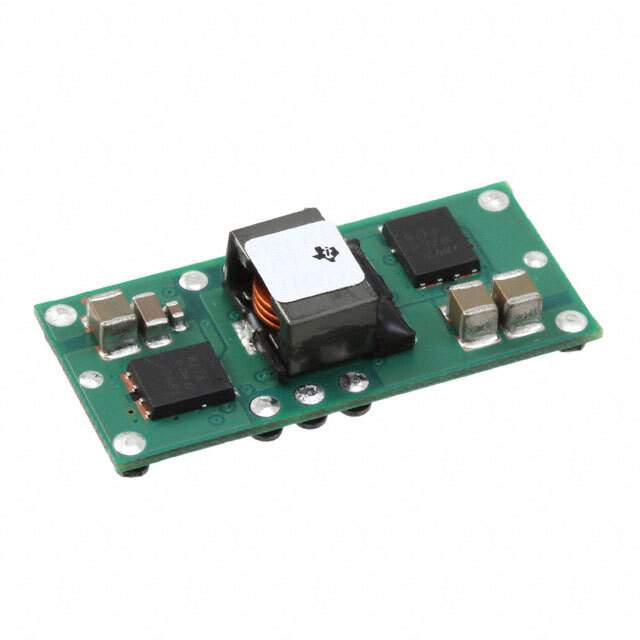

PTH03010YAS Real Image
Same model may have multiple batches, images only for reference.

PTH03010YAS

Part No PTH03010YAS
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description DC/DC CONVERTER 0.55-1.8V 27W
Datasheet
PTH03010YAS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Texas Instruments
Series PTH03010Y
Packaging Tray
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 2.95V
Voltage - Input (Max) 3.65V
Voltage - Output 1 0.55 ~ 1.8 V
Current - Output (Max) 15A
Applications ITE (Commercial)
Features Remote On/Off, OCP, UVLO
Mounting Style SMD/SMT
Package 10-SMD Module
Size / Dimension 1.37" L x 0.62" W x 0.38" H (34.8mm x 15.8mm x 9.6mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 88%
Power (Watts) - Max 27W
Win Source Part Number 141987-PTH03010YAS
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PTH03010YAS CAD Model

Description

The PTH03010YAS is a high-performance, 15-A rated, non-isolated power module produced by Texas Instruments, a leading global semiconductor company.

  • Series: PTH series
  • Output Voltage Range: Adjustable from 0.8 V to 1.8 V
  • Input Voltage Range: 3.0 V to 5.5 V
  • Efficiency: Up to 95%
  • Feature: Auto-Track sequencing
  • Protection Features: Overcurrent and over-temperature protection
  • Package: Compact, surface-mount package
  • Applications: Data communication, telecommunications, and industrial systems
