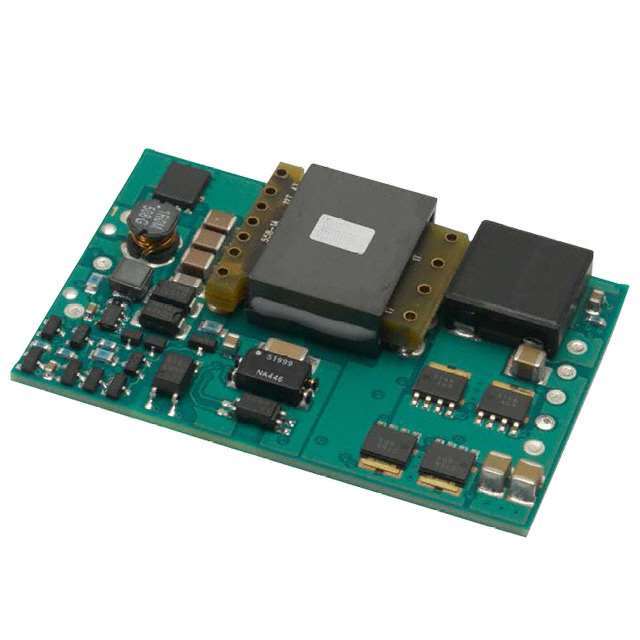

PTB48502AAH

Part No PTB48502AAH
Manufacturer Texas Instruments
Catalog DC DC Converters
Description DC DC CONVERTER 3.3V 1.2V 45W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Product Status Obsolete
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 3.3V
Voltage - Output 2 1.2V
Current - Output (Max) 10A, 13A
Power (Watts) 45 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 82%
Mounting Type Through Hole
Case / Package 10-DIP Module
Size / Dimension 2.22" L x 1.45" W x 0.47" H (56.4mm x 36.8mm x 12.0mm)
Package Tray
Supply and Demand Status Shortage
Win Source Part Number 1537846-PTB48502AAH
Ultra Librarian 3D Model Ultra Librarian PTB48502AAH CAD Model
