Product Overview: Texas Instruments PCA9554DGVR

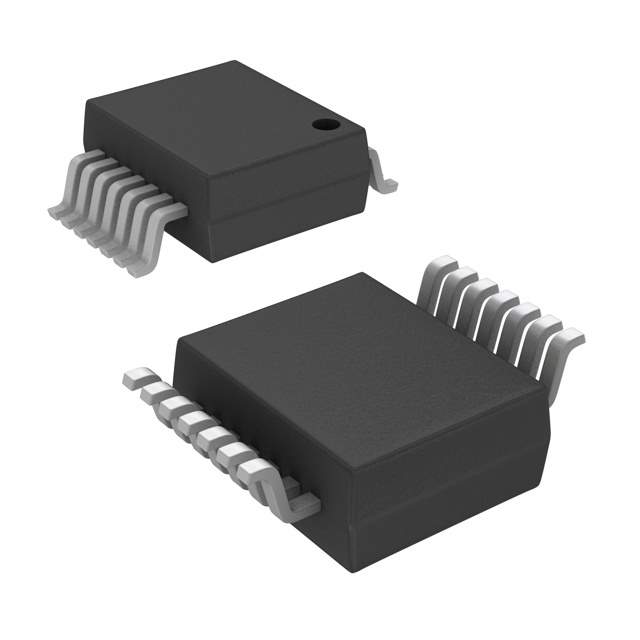

The Texas Instruments PCA9554DGVR is a robust, low-voltage 8-bit General Purpose Input/Output (GPIO) expander with an I2C-bus/SMBus interface that allows for a significant expansion of I/O capabilities of a microcontroller or processor. This versatile component is housed in a compact TSSOP-16 package, making it an ideal choice for space-constrained applications where additional I/Os are required.

Key Features

• Interface: The PCA9554DGVR communicates via an I2C-bus/SMBus interface, which supports standard (100 kHz), fast (400 kHz), and high-speed (3.4 MHz) I2C modes, making it highly flexible for various communication needs.
• GPIO Expansion: It provides 8 additional GPIOs, which can be configured as inputs or outputs, allowing for easy and efficient expansion of I/O capabilities without the need for a more significant number of pins on the main processor.
• Interrupt Output: An interrupt output pin is available and can be configured to alert the host processor of changes to the input pins, thereby reducing the need for constant polling and saving power.
• Low Power Consumption: This device is optimized for low power consumption, making it suitable for battery-powered and power-sensitive applications.
• Operating Voltage: The PCA9554DGVR operates within a supply voltage range of 2.3V to 5.5V, providing compatibility with both 3.3V and 5V logic levels.
• Polarity Inversion: Input polarity inversion is supported, allowing users to adapt the expander to their specific needs without changing the logic of their system.
• Software Reset: It includes a software reset feature, enabling the device to be reset through I2C commands.

Applications

The PCA9554DGVR is suitable for a wide range of applications, including:

• Servers
• Industrial Control
• Embedded Systems
• Consumer Electronics
• Portable Devices

With its small footprint, ease of use, and extensive feature set, the PCA9554DGVR from Texas Instruments is an excellent choice for designers looking to increase the I/O capability of their systems without significant redesign or increase in board size.
