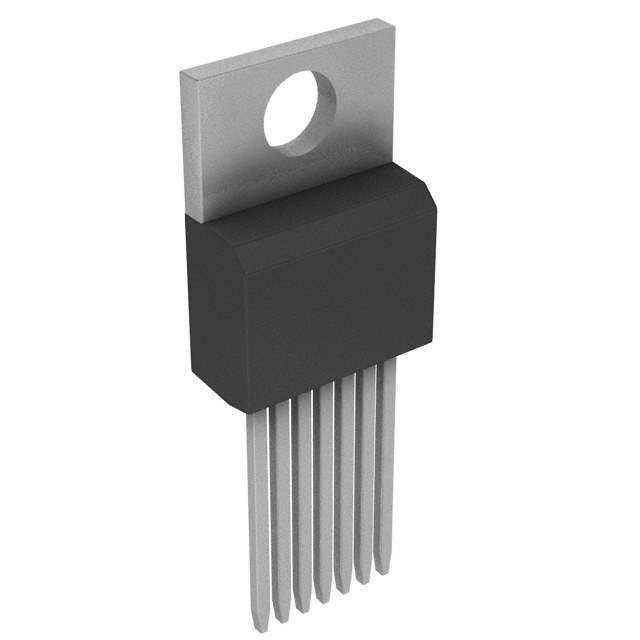

OPA547T-1G3

Name: OPA547T-1G3
Brand: Texas Instruments
SKU: 263916
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	OPA547T-1G3
Manufacturer	Texas Instruments
Catalog	Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description	Op Amp Single High Output Current Amplifier ±30V/60V 7-Pin(7+Tab) TO-220 Tube / IC OPAMP GP 1MHZ TO220-7
Datasheet	OPA547T-1G3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Integrated Circuits
Manufacturer	Texas Instruments
Packaging	Tube/Rail
Status	Active
Amplifier Type	General Purpose
Number of Circuits	1
Slew Rate	6 V/μs
Gain Bandwidth Product (GBP)	1MHz
Current - Input Bias	100nA
Voltage - Input Offset	1mV
Operating Supply Current	10mA
Channel Output Current	750mA
Supply Voltage - Operating	8 V to 60 V, ±4 V to 30 V
Temperature Range - Operating	-40°C to 85°C
Mounting	Through Hole
Case / Package	TO-220-7
Win Source Part Number	209506-OPA547T-1G3
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Family Name	OPA547
Introduction Date	November 01, 2004
ECCN	EAR99
Halogen Free	Compliant
Estimated EOL Date	2031
Ultra Librarian 3D Model	Ultra Librarian OPA547T-1G3 CAD Model

Alternative Products

Description

The OPA547T-1G3 is a high-quality, high-voltage, and high-current operational amplifier from Texas Instruments, a renowned global semiconductor company.

Power Supply Range: ±10V to ±30V or a single supply of 20V to 60V
Output Currents: Up to 10A
Operating Voltages: Up to 60V
Internal Current Limit: User-adjusted from 1mA to 10A with an external resistor
Thermal Shutdown: Yes
Output Disable Functions: Yes
Package: 7-pin TO-220
Slew Rate: 10V/us
Wide Bandwidth: 3MHz
