The OPA452TA-1G3 is a robust, high-voltage, high-current operational amplifier designed and manufactured by Texas Instruments. This operational amplifier (op-amp) is part of TI's OPAx52 series, known for their reliability and performance in demanding applications. The OPA452TA-1G3 is specifically engineered to cater to requirements that necessitate a wide supply voltage range and high output current capability.

Key Features

• Wide Supply Range: The device operates with a supply voltage range from 10V to 60V, making it versatile for various applications, from industrial automation to audio amplification.
• High Output Current: It is capable of delivering a continuous output current of up to 50mA, with the ability to handle peak currents significantly higher, which is ideal for driving heavy loads.
• Thermal Protection: The OPA452TA-1G3 comes with built-in thermal shutdown protection, ensuring the device operates within safe temperature ranges and prevents damage from overheating.
• Robust Output Stage: The output stage of the op-amp is protected against short circuits, adding a layer of reliability in challenging electrical environments.
• Wide Temperature Range: It can operate over an extended industrial temperature range from -40°C to +85°C, making it suitable for harsh environments.

Applications

The OPA452TA-1G3 is designed for a variety of applications where high voltage and current are required. It is commonly used in:

• Power supplies
• Motor control circuits
• Transducer amplifiers
• Audio amplification systems
• Test and measurement equipment

Package and Quality

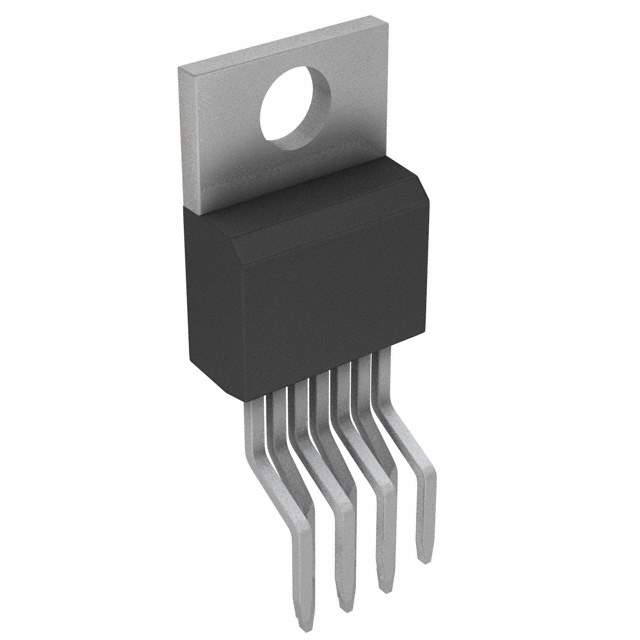

The OPA452TA-1G3 is provided in a TO-220-7 form factor, which is a through-hole package that allows for easy mounting on printed circuit boards. The package is designed to optimize heat dissipation, which is critical for maintaining performance and longevity in high-power applications. Furthermore, the product meets Texas Instruments' stringent quality standards, ensuring reliability and consistency for users integrating the OPA452TA-1G3 into their systems.

Conclusion

With its combination of high voltage and current capabilities, thermal protection, and robust design, the OPA452TA-1G3 from Texas Instruments stands out as an exceptional choice for engineers and designers looking for an operational amplifier that can handle tough conditions while delivering consistent performance.
