Product Overview: OPA2172IDRGR

The OPA2172IDRGR is a high-performance operational amplifier designed and manufactured by Texas Instruments (TI), a leader in semiconductor solutions. This op-amp is part of TI's precision amplifier portfolio and is tailored for a wide array of applications including test and measurement, industrial control systems, medical devices, and audio equipment.

Key Features

• Low Noise: The OPA2172IDRGR offers a low voltage noise density of 8.8 nV/√Hz, making it suitable for applications that require high signal integrity and minimal signal distortion.
• High Bandwidth: With a bandwidth of 10 MHz and a fast slew rate of 20 V/µs, this operational amplifier is capable of handling high-speed signal processing tasks with ease.
• Rail-to-Rail Output: The rail-to-rail output swing provides increased dynamic range, which is particularly beneficial when operating with low supply voltages.
• Wide Supply Range: It operates from a single supply voltage ranging from 4.5 V to 36 V or dual supplies of ±2.25 V to ±18 V, offering flexibility for various circuit configurations.
• Low Quiescent Current: The device features a low quiescent current of 1.6 mA per channel, which helps in reducing the overall power consumption of the system.

Package and Quality

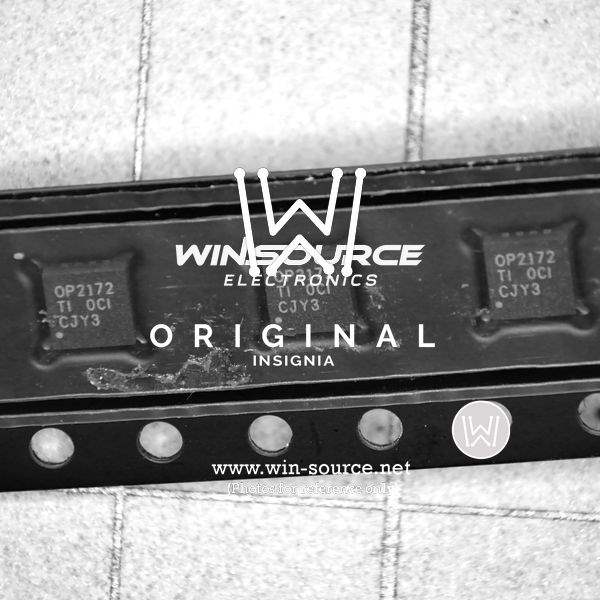

The OPA2172IDRGR comes in a compact VSSOP-8 (Very-Thin Shrink Small Outline Package) which is ideal for space-constrained applications. The package is designed for surface-mount technology, providing ease of integration into PCB designs.

Applications

This operational amplifier is versatile and can be used in a variety of applications, such as:

• Precision analog circuits
• Active filters and data acquisition systems
• Audio processing
• Sensor amplification and conditioning
• Industrial process controls
• Medical instrumentation

With its combination of low noise, high speed, and precision, the OPA2172IDRGR from Texas Instruments is an excellent choice for designers looking to improve the performance and efficiency of their electronic systems.
