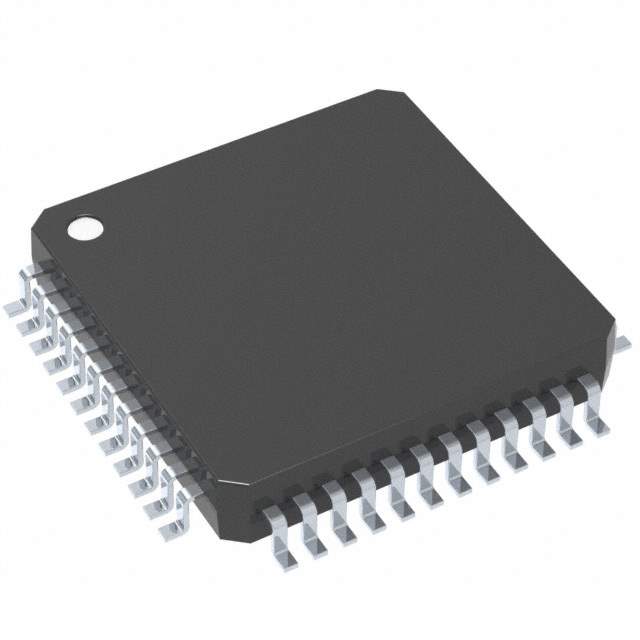

MSP430F5309IPTR Real Image
Same model may have multiple batches, images only for reference.

MSP430F5309IPTR

Part No MSP430F5309IPTR
Manufacturer Texas Instruments
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT 24KB FLASH 48LQFP
Datasheet
MSP430F5309IPTR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Core Processor CPUXV2
Part Core Size 16-Bit
Speed(Frequency) 25MHz
Number of I/O 31
Program Memory Size 24KB (24K x 8)
Program Memory Type FLASH
Data RAM Size 6K x 8
Supply Voltage - Operating 1.8 V to 3.6 V
Data Converters A/D 8x10b
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 48-LQFP (7x7)
Win Source Part Number 041803-MSP430F5309IPTR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MSP430F5309IPTR CAD Model

Description

The MSP430F5309IPTR is a high-performance microcontroller product from Texas Instruments, a renowned global semiconductor company that designs and manufactures analog ICs and embedded processors.

  • CPU: 16-bit RISC
  • Memory: 128KB Flash, 6KB RAM
  • Operating Frequency: Up to 25MHz
  • Power-Saving Modes: Five
  • ADC: 12-bit
  • Multiplier: 32-bit hardware multiplier
  • Timers: Three 16-bit timers
  • Communication Interfaces: Four
  • Package: 64-pin LQFP
