Same model may have multiple batches, images only for reference.

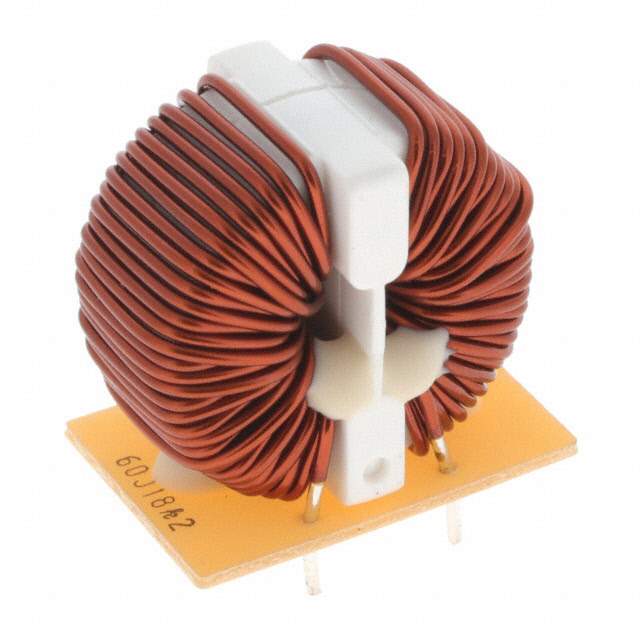

SC22-06-60J Real Image
Same model may have multiple batches, images only for reference.

SC22-06-60J

Part No SC22-06-60J
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 6 mH @ 10 kHz
Current Rating (Max) 6A
DC Resistance (DCR) (Max) 46mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.161" L x 0.807" W (29.50mm x 20.50mm)
Height (Max) 1.161" (29.50mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SC22-06
Other Names UALSC220660J00,399-SC22-06-60J
Standard Package 150
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1276948-SC22-06-60J
Ultra Librarian 3D Model Ultra Librarian SC22-06-60J CAD Model

Description

The KEMET 1276948-SC22-06-60J is a common mode choke designed for power line filtering.

  • Voltage Rating: 250V AC and DC
  • Current Rating: 6A
  • Height: 1.161" (29.50mm)
  • Number of Lines: 2
  • Inductance: 6mH @ 10kHz
  • DC Resistance (DCR): 46mOhm
  • Mounting: Through-hole
  • Package/Case: Vertical, 4 PC pin
  • RoHS: RoHS compliant
  • ECCN: EAR99
