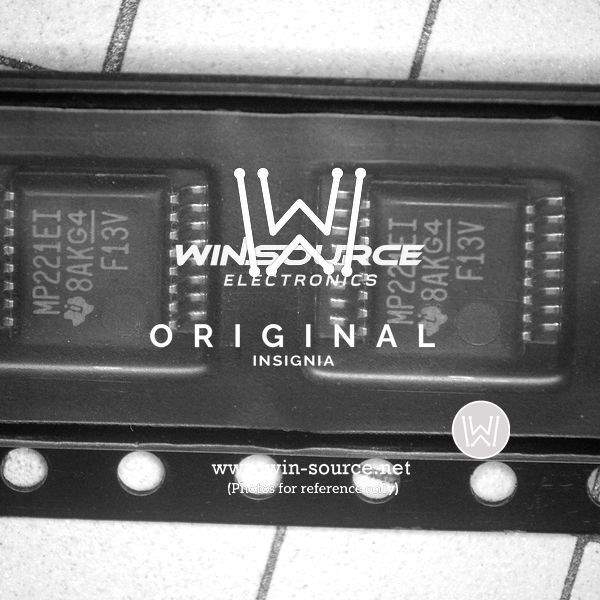

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Type Transceiver
Protocol RS232
Number of Drivers/Receivers 1/1
Duplex Full
Receiver Hysteresis 500mV
Data Rate 250kbps
Supply Voltage - Operating 3 V to 5.5 V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 16-SSOP
Win Source Part Number 021462-MAX3221EIDBR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name MAX3221E
Introduction Date August 01, 2003
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian MAX3221EIDBR CAD Model

Description

The MAX3221EIDBR from Texas Instruments is a highly advanced and sophisticated RS-232 transceiver that is designed to meet the demanding requirements of today's high-speed, bidirectional, full-duplex data communication applications.

  • Type: Single driver and single receiver
  • Voltage Supply: Single 3.0V to 5.5V supply
  • Data Signaling Rate: Up to 250kbps
  • ESD Protection: Exceeding ±15kV using the Human Body Model (HBM)
  • VCC Operation: 2V to 5.5V
  • Standards Compatibility: TIA/EIA-232-F and ITU v.28
  • Package: SSOP-16
