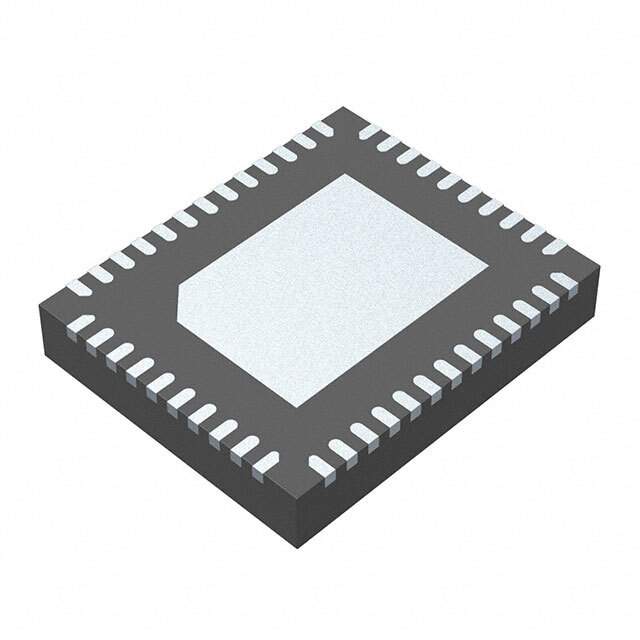

The LP5030RJVR is a cutting-edge LED driver integrated circuit (IC) from Texas Instruments (TI), designed to provide a highly efficient solution for controlling and driving multiple LEDs. This IC is particularly well-suited for applications requiring precise color mixing, intensity control, and pattern display.

Key Features

• Channel Count: The LP5030RJVR boasts 30 individually controllable channels, making it ideal for complex LED configurations.
• Current Control: Each channel can be programmed for constant current control to ensure uniform brightness across all LEDs, with a maximum current of 40 mA per channel.
• Color Mixing: The IC supports advanced color mixing capabilities, enabling designers to create a wide spectrum of colors by adjusting the intensity of individual LEDs.
• Communication Interface: It utilizes an I2C-compatible interface for communication, allowing for easy integration into existing systems.
• Flexible Power Supply: The device operates over a wide power supply range, from 3.0V to 5.5V, accommodating various application requirements.
• Integrated Power-Saving Modes: Built-in power-saving modes, such as automatic power-down, help to reduce power consumption when the LEDs are not in use.
• Error Detection: Features like open LED detection and thermal error flagging ensure reliable operation and safeguard the system against common issues.

Applications

The LP5030RJVR is versatile and can be used in numerous applications that require dynamic LED lighting. These include:

• Smart lighting systems
• RGB or RGBW LED strips
• Backlighting for LCD displays
• General-purpose indicator lights
• Interactive artwork and display installations

Quality and Reliability

Texas Instruments is known for its commitment to quality, and the LP5030RJVR is no exception. It is designed to meet the rigorous standards of industrial performance, ensuring long-term reliability for products that incorporate this advanced LED driver IC.
