Introducing the LMZM33606RLXR Power Module from Texas Instruments

The LMZM33606RLXR is a high-efficiency, easy-to-use power module from the renowned semiconductor manufacturer, Texas Instruments (TI). This compact power solution is designed to simplify the power supply design for a wide range of applications by integrating a synchronous step-down DC/DC converter with power MOSFETs, a shielded inductor, and passives into a low-profile package.

Key Features

• Wide Input Voltage Range: The LMZM33606RLXR operates over a broad input voltage range of 4V to 36V, making it suitable for various applications, from industrial to automotive systems.
• High Output Current: It delivers up to 6A of continuous output current, ensuring reliable performance for high-power applications.
• Efficient Power Conversion: The module boasts high-efficiency power conversion, which can lead to energy savings and reduced heat generation.
• Adjustable Output Voltage: The output voltage is adjustable from 0.6V to 12V, providing design flexibility to meet specific voltage requirements.
• Integrated Thermal Management: With an integrated heat sink and excellent thermal performance, the LMZM33606RLXR can operate reliably in challenging thermal environments.

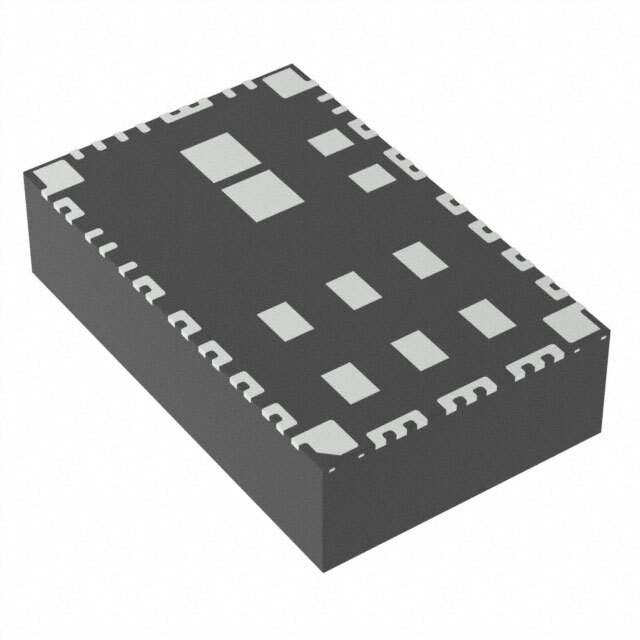

• Compact Footprint: The power module comes in a low-profile, surface-mount package that is suitable for space-constrained applications.

Applications

The versatility of the LMZM33606RLXR makes it an ideal choice for a variety of applications, including:

• Telecommunications infrastructure
• Industrial automation and control systems
• Automotive infotainment and telematics
• Networking equipment
• Enterprise computing and storage

Design Support

TI provides comprehensive design support for the LMZM33606RLXR, including detailed datasheets, application notes, and an array of design tools. This support helps engineers to accelerate the development process and bring products to market faster.

With its robust feature set and TI's renowned support, the LMZM33606RLXR power module represents a reliable and efficient solution for meeting the demanding power requirements of modern electronic devices.
