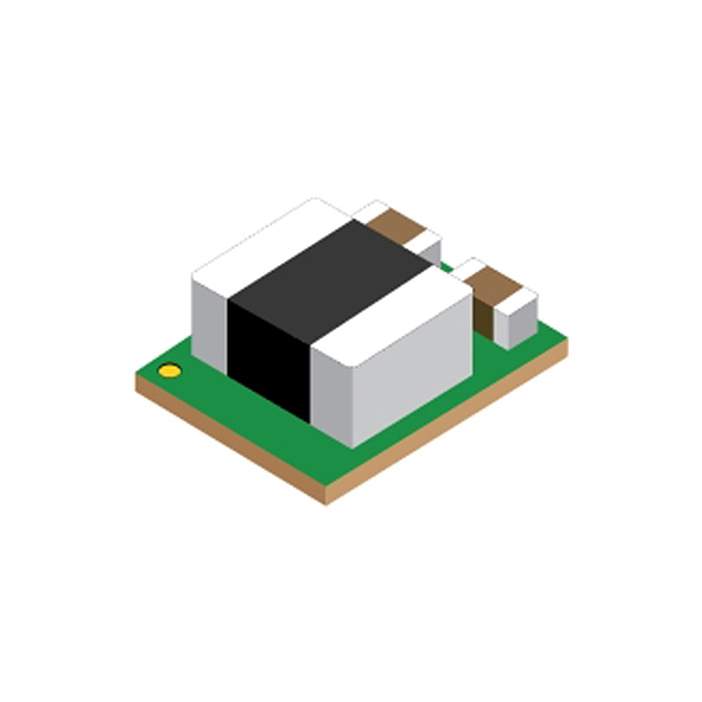

The LMZM23601V3SILT from Texas Instruments is a power module that simplifies the process of power supply design by integrating a step-down voltage converter with power MOSFETs, a shielded inductor, and passives into a low profile, QFN package. This highly efficient device is capable of delivering up to 1A of continuous output current with excellent power dissipation and thermal performance, making it an ideal solution for space-constrained applications.

Key Features:

• Integrated Power Solution: Combines a DC/DC converter with power components in a compact package, reducing external component count and simplifying design.
• Wide Input Voltage Range: Operates over a broad input voltage from 4V to 36V, accommodating a variety of power sources and fluctuating inputs.
• Adjustable Output Voltage: Provides an adjustable output voltage from 2.5V to 15V, allowing for flexibility in targeting various applications and post-regulation needs.
• High Efficiency: Offers high efficiency and low quiescent current, which is beneficial for power-sensitive applications.
• Thermal Performance: The advanced packaging and integrated inductor design enable excellent thermal performance and reliability.
• Protection Features: Includes over-current, over-temperature, and under-voltage lockout protections to ensure safe operation under abnormal conditions.

Applications:

The LMZM23601V3SILT is versatile and can be used in a range of applications, particularly where space is at a premium and efficiency is crucial. It is ideal for powering complex digital loads such as microprocessors, FPGAs, and DSPs. Its robustness and reliability also make it suitable for industrial, automotive, and communication equipment.

Design Support:

Texas Instruments provides comprehensive design resources for the LMZM23601V3SILT, including datasheets, design tools, simulation models, and application notes to assist engineers in accelerating their product development cycles.
