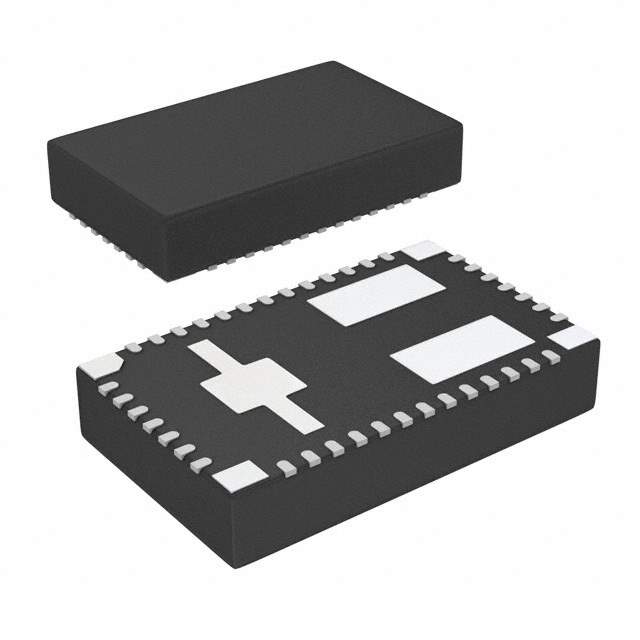

Introducing the LMZ31506HRUQR Power Module from Texas Instruments

The LMZ31506HRUQR is a high-performance, easy-to-use power module from Texas Instruments (TI) designed to meet the demands of a wide range of applications. This power solution is part of TI's SIMPLE SWITCHER® module family and it integrates a DC/DC converter with power MOSFETs, a shielded inductor, and passives into a low profile, QFN package. This integration provides a compact, efficient power management solution that simplifies design and accelerates time to market.

Key Features of the LMZ31506HRUQR

• Wide Input Voltage Range: The module operates from a 2.95V to 14.5V input voltage range, making it suitable for a variety of supply rails.
• High Output Current: It is capable of delivering up to 6A of output current, addressing the needs of high-power applications.
• Adjustable Output Voltage: The output voltage can be adjusted from 0.6V to 5.5V, which allows for flexibility in powering different ICs and systems.
• Efficient Power Conversion: The LMZ31506HRUQR is designed for high efficiency across a wide load range, which is critical for reducing heat and improving system reliability.
• Integrated Shielded Inductor: The built-in inductor is shielded for reduced EMI, ensuring compliance with stringent electromagnetic interference requirements.
• Thermal Performance: The module's enhanced thermal performance enables full current delivery over a wide temperature range without the need for airflow or additional heat sinking.
• Power Good Output: This feature provides a power sequencing and monitoring option for system power management.
• Protection Features: It includes over-temperature, over-voltage, under-voltage, and over-current protections to ensure safe operation under abnormal conditions.

Applications

The LMZ31506HRUQR is ideal for a broad spectrum of applications, including but not limited to:

• Telecommunications and Networking Equipment
• Industrial Systems
• Enterprise Computing
• Storage and Data Center Infrastructure
• Test and Measurement Equipment

With its robust feature set and ease of use, the LMZ31506HRUQR from Texas Instruments represents a versatile and reliable power management solution that engineers can trust for a wide array of applications.
