The LMZ30604RKGT is a high-performance, easy-to-use power solution from Texas Instruments, designed to meet the demanding needs of today's advanced digital electronics. This power module integrates a DC/DC converter with the inductor, simplifying the design process and reducing time to market for a wide range of applications.

Key Features

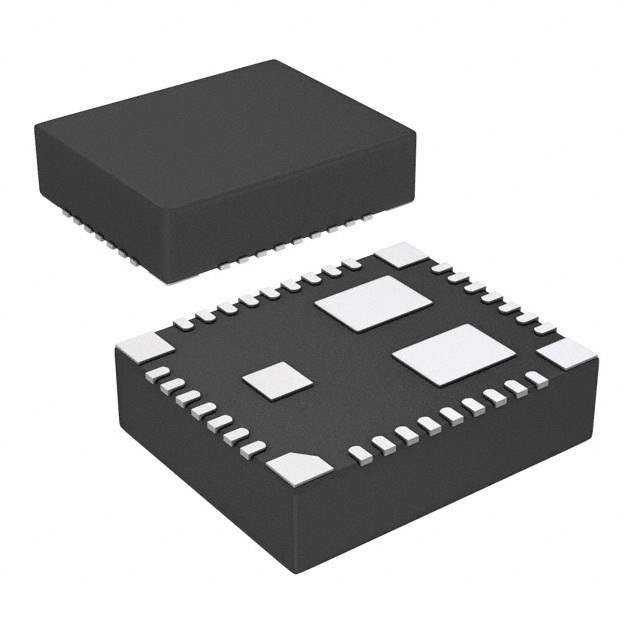

• Integrated Power Solution: The LMZ30604RKGT combines a 4A step-down DC/DC converter with power MOSFETs, a shielded inductor, and passives into a low profile, QFN package. This integration reduces component count and simplifies the power supply design.
• Wide Input Voltage Range: This module supports an input voltage range of 2.95V to 6V, making it versatile for various applications from industrial to telecommunications and networking.
• Adjustable Output Voltage: The output voltage is adjustable from 0.8V to 3.6V, which allows for a high degree of flexibility to power a variety of ICs and systems.
• High Efficiency: The LMZ30604RKGT is optimized for high efficiency across a wide load range, which is critical for reducing heat and improving reliability in space-constrained applications.
• Power Good Output: A power good output provides a signal indicating when the output is within its nominal voltage range, which is useful for sequencing and monitoring in complex systems.
• Protection Features: The module includes built-in over-temperature, over-current, and under-voltage lockout protections to ensure safe operation under abnormal conditions.

Applications

The LMZ30604RKGT is suitable for a broad range of applications, including but not limited to:

• FPGA, DSP, and ASIC power supplies
• Networking and telecommunication infrastructure
• Industrial and automotive electronics
• Test and measurement equipment

Quality and Reliability

Texas Instruments is known for its commitment to quality and reliability, and the LMZ30604RKGT is no exception. It is designed and tested to meet the highest standards, ensuring consistent performance across various conditions and applications.
