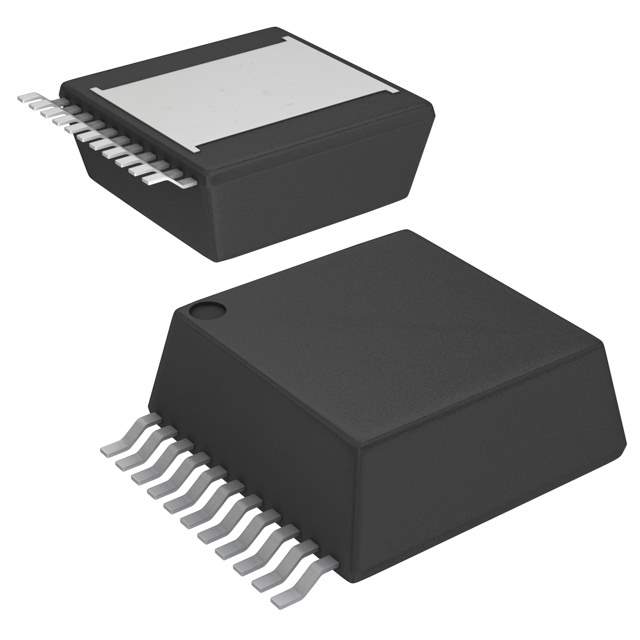

LMZ22008TZ/NOPB - Texas Instruments

The LMZ22008TZ/NOPB is a high-performance, easy-to-use power module from Texas Instruments, designed to meet a wide range of power requirements in various applications. This power module is part of the SIMPLE SWITCHER® family and is capable of delivering up to 8A of output current with exceptional power conversion efficiency, reliability, and thermal performance.

Key Features:

• Output Voltage Range: The LMZ22008TZ/NOPB provides an adjustable output voltage range from 0.8V to 6V, which allows for flexible use in different circuit configurations.
• Input Voltage Range: This device operates over a wide input voltage range from 6V to 20V, making it suitable for various industrial and commercial power supply scenarios.
• High Efficiency: With an integrated shielded inductor, the module offers high efficiency and excellent EMI performance, reducing the need for additional external components.
• Thermal Performance: The innovative package design enhances thermal performance and allows for operation at full load over a wide temperature range without the need for airflow or additional heat sinking.
• Protection Features: It includes built-in over-temperature, over-current, and under-voltage lockout protection, ensuring the safety and reliability of the module under various conditions.
• Power Good Output: The LMZ22008TZ/NOPB features a 'power good' output indicator for sequencing and monitoring purposes.
• Easy to Use: With minimal external components required, this power module simplifies the design process, enabling quick and easy implementation into the end application.

Applications:

The LMZ22008TZ/NOPB is versatile and can be used in a wide range of applications, including but not limited to:

• Telecommunications equipment
• Networking equipment such as routers and switches
• Industrial applications and automation systems
• Test and measurement equipment
• Consumer electronics

The LMZ22008TZ/NOPB from Texas Instruments stands out for its performance, ease of use, and integration features, making it an ideal choice for designers looking to enhance power management in their systems.
