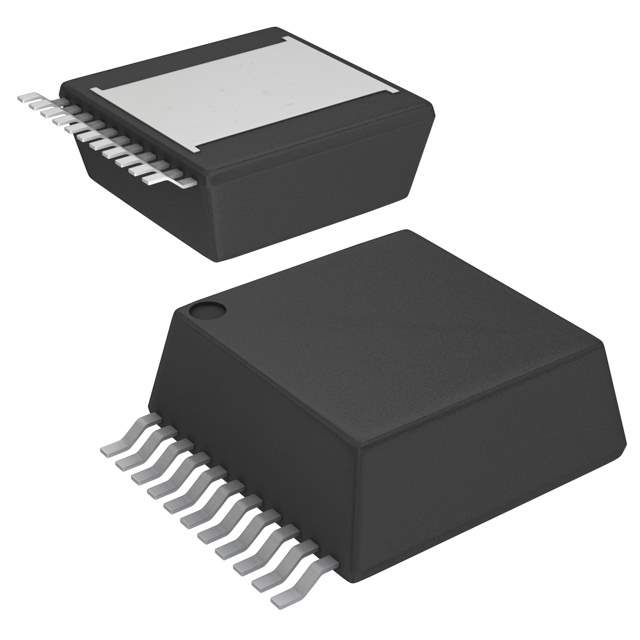

Introducing the LMZ13608TZE Power Module from Texas Instruments

The LMZ13608TZE is a highly efficient, easy-to-use power module that offers exceptional performance in a compact package. Manufactured by Texas Instruments, a leader in semiconductor solutions, this power module is designed to meet the needs of a wide array of applications, including telecommunications, industrial systems, and consumer electronics.

Key Features:

• High-Efficiency Power Conversion: The LMZ13608TZE operates with an efficiency of up to 95%, which helps to minimize power loss and heat generation, thereby enhancing system reliability and allowing for a smaller footprint.
• Wide Input Voltage Range: This power module supports an input voltage range of 6V to 36V, making it versatile for various applications and ensuring stable operation even with fluctuating supply voltages.
• Adjustable Output Voltage: With an output voltage that can be adjusted from 0.8V to 6V, the LMZ13608TZE caters to a broad spectrum of power requirements, providing flexibility for designers.
• Integrated Shielded Inductor: The module includes an integrated shielded inductor, which reduces electromagnetic interference (EMI) and simplifies the design process by eliminating the need for external components.
• Thermal Performance: The LMZ13608TZE is equipped with excellent thermal performance characteristics, ensuring operation in high-temperature environments without compromising efficiency or reliability.

Design Advantages:

The LMZ13608TZE module is designed with the engineer in mind. Its compact size (15mm x 15mm x 2.8mm) allows for integration into space-constrained applications, while the simple pinout and minimal external components requirement significantly reduce design complexity and time-to-market.

Furthermore, the power module includes features such as an adjustable soft-start, pre-bias startup, and over-current and over-temperature protection, providing additional layers of system safety and robustness. Its enhanced thermal performance and reliability make it an ideal choice for applications requiring a high level of performance in challenging environments.

With the LMZ13608TZE, Texas Instruments continues to demonstrate its commitment to providing innovative power management solutions that meet the evolving needs of modern electronic systems. Whether you're designing for industrial, telecommunications, or consumer applications, the LMZ13608TZE offers a perfect blend of efficiency, reliability, and ease of use.
