Product Overview: LMX2331LSLBX/NOPB

The LMX2331LSLBX/NOPB is a high-performance, low-power frequency synthesizer system from Texas Instruments that combines a fully integrated PLL (Phase-Locked Loop) and VCO (Voltage Controlled Oscillator) in a single package. This device is designed to meet the stringent requirements of wireless communication systems and is particularly suitable for mobile phone and other RF applications.

Key Features

• Dual PLL Design: The LMX2331LSLBX/NOPB features a dual PLL architecture which allows for independent frequency generation for both local oscillator and IF (Intermediate Frequency) stages.
• Low Phase Noise: With its advanced design, this synthesizer offers very low phase noise performance, which is critical for maintaining signal integrity in communication systems.
• Integrated VCOs: The on-chip VCOs reduce the need for external components, thus simplifying design and saving board space.
• Programmable Charge Pump: The charge pump current is programmable, allowing designers to optimize loop filter characteristics for specific applications.
• Power Saving Mode: A power-saving mode significantly reduces current consumption when the device is not in active use, making it ideal for battery-powered applications.
• Serial Interface: The device is programmable via a three-wire serial interface, which facilitates easy control and programming of the synthesizer's functions.

Applications

The LMX2331LSLBX/NOPB is versatile and can be used in a variety of applications, including:

• Mobile phones
• Wireless LANs
• Portable radios
• Other RF communication systems

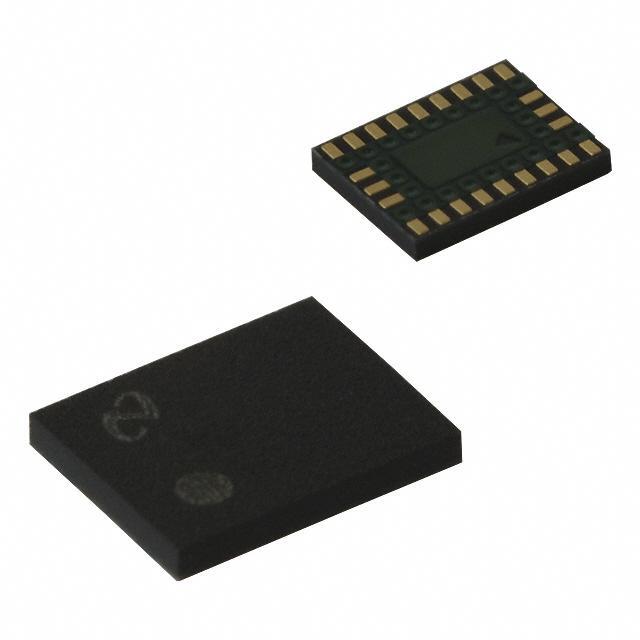

Package and Quality

This synthesizer is offered in a compact, surface-mount package, making it suitable for use in space-constrained applications. Additionally, the LMX2331LSLBX/NOPB is part of TI's NOPB (No Lead (Pb)) product offerings, which complies with RoHS (Restriction of Hazardous Substances) regulations, ensuring environmental friendliness and suitability for use in all markets.

With its blend of performance, integration, and power efficiency, the LMX2331LSLBX/NOPB from Texas Instruments stands out as an excellent choice for designers looking to enhance their RF system capabilities.
