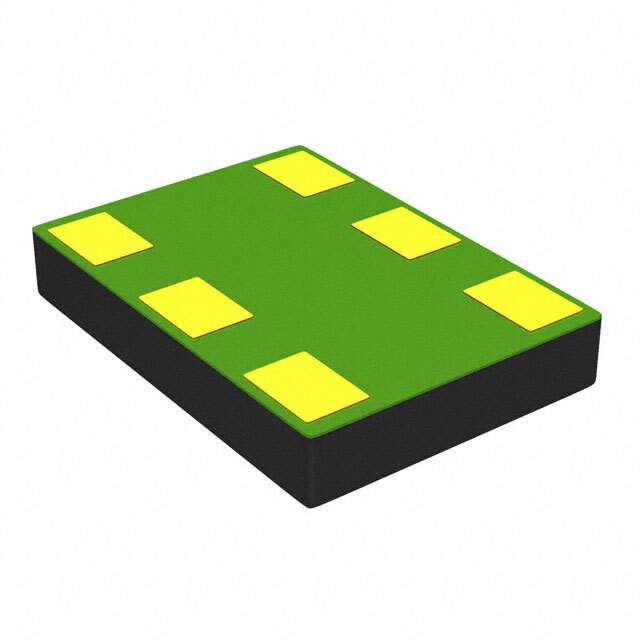

Product Overview: LMK61E0-156M25SIAT

The LMK61E0-156M25SIAT is a high-performance, low-noise programmable oscillator from Texas Instruments, designed to meet the demanding requirements of modern electronics. This oscillator is part of the LMK61E0 family, which is known for its exceptional stability and precision.

Key Features

• Frequency Range: The device offers a wide frequency range, making it suitable for a variety of applications. The LMK61E0-156M25SIAT specifically operates at 156.25 MHz, which is a common clock frequency used in networking, telecommunications, and data processing.
• Low Phase Jitter: With extremely low phase jitter, this oscillator ensures high-quality signal integrity, which is critical for high-speed communication and digital signal processing applications.
• Programmable: The device features programmable options such as frequency margining, allowing users to fine-tune the oscillator for specific application needs.
• Supply Voltage: It operates with a supply voltage of 3.3V, making it compatible with a wide range of electronic systems without the need for additional voltage regulation components.
• Output Format: The LMK61E0-156M25SIAT provides a differential output, which minimizes noise and improves signal quality over long traces and in noisy environments.
• Temperature Stability: The oscillator maintains stable performance across a broad temperature range, ensuring reliable operation under varying environmental conditions.
• Form Factor: It comes in a compact, surface-mount package, which is ideal for space-constrained applications.
• Quality and Reliability: As a product of Texas Instruments, the LMK61E0-156M25SIAT is backed by the company's reputation for quality and reliability in electronic components.

Applications

The LMK61E0-156M25SIAT is versatile and can be used in a variety of applications, including:

• High-speed data converters
• Networking and telecommunications equipment
• Server and storage platforms
• Wireless infrastructure
• Test and measurement systems

With its robust feature set and programmable capabilities, the LMK61E0-156M25SIAT from Texas Instruments is an excellent choice for designers seeking a reliable and flexible clock solution for their high-performance electronic systems.
