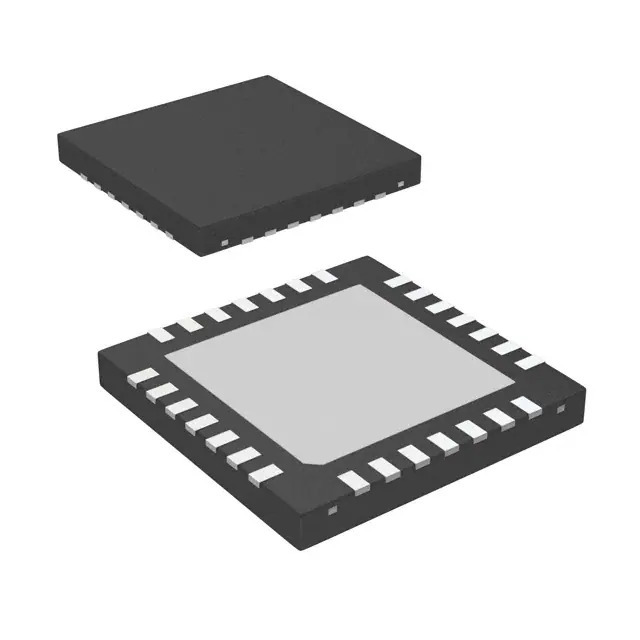

The LMH6526SP/NOPB is a sophisticated, digitally controlled variable gain amplifier (DVGA) designed by Texas Instruments to cater to a wide array of applications that require precise amplitude control of signal chains. This high-performance product is especially well-suited for wireless infrastructure, test equipment, and military communication systems where reliability and precision are paramount.

Key Features

• Wide Frequency Range: The LMH6526SP/NOPB operates effectively over a broad frequency spectrum, making it versatile for various signal processing tasks.
• Digital Gain Control: With a serial peripheral interface (SPI) or parallel control, users can adjust the gain in 0.5 dB steps up to 31.5 dB, providing fine-tuned signal amplification.
• High Linearity: The device exhibits excellent linearity across its operating range, ensuring signal integrity and minimal distortion.
• Low Noise Figure: A low noise figure is maintained throughout the gain range, preserving the quality of the received signal.
• Integrated Temperature Sensor: The onboard temperature sensor helps monitor system performance and reliability under varying conditions.

Applications

• Wireless infrastructure (e.g., base stations for mobile networks)
• Test and measurement equipment
• Military and defense communication systems
• IF sampling receivers

Quality and Reliability

As with all Texas Instruments products, the LMH6526SP/NOPB is manufactured to the highest quality standards. The NOPB designation indicates that this component is lead-free ("No Lead"), complying with international environmental standards for electronic components. It is available in a surface-mount package, ensuring ease of integration into various circuit designs.

Technical Specifications

• Package: Surface-Mount
• Supply Voltage: 5V typical
• Operating Temperature: -40°C to 85°C
• Product Status: Active

For detailed technical specifications, application notes, and support documentation, customers are encouraged to visit the Texas Instruments website or contact their support team.
