The LMH0001SQX from Texas Instruments is a high-performance cable driver designed to support the demands of high-definition video transmission. This robust component is engineered to drive SDI, HD-SDI, and 3G-SDI video signals over coaxial cable, making it an ideal choice for professional video and broadcast applications.

Key Features

• High Data Rates: The LMH0001SQX is capable of supporting data rates up to 2.97 Gbps, ensuring compatibility with a wide range of video formats including 1080p60.
• Excellent Signal Integrity: This cable driver maintains excellent signal quality over long cable runs, thanks to its low jitter and low power consumption.
• Adaptive Cable Equalization: It features adaptive equalization to compensate for signal loss over long cable distances, providing a more reliable signal transmission.
• Power Efficiency: With a 3.3V supply voltage, the LMH0001SQX is designed for power-sensitive applications, ensuring efficient operation without sacrificing performance.

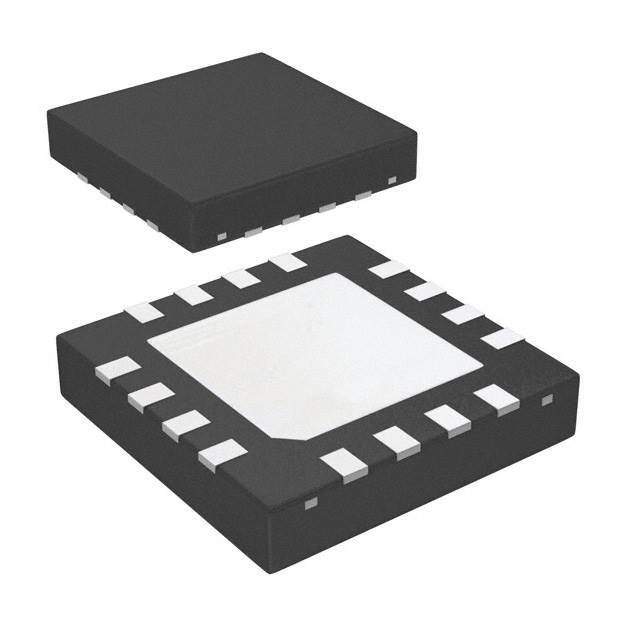

• Flexibility: The device comes in a compact 16-pin WQFN package, making it suitable for space-constrained environments.

Applications

• Digital Video Routers and Switchers
• Video Editing/Production Equipment
• Professional Video Cameras
• Broadcast Studio Equipment
• Video Distribution Amplifiers

Product Specifications

The LMH0001SQX is a testament to Texas Instruments' commitment to delivering industry-leading video interface solutions. Its advanced features and reliable performance make it a top choice for professionals seeking to maintain signal integrity in high-definition video applications.
