Introducing the LMG3410R070RWHT from Texas Instruments

The LMG3410R070RWHT is a state-of-the-art power module designed by Texas Instruments, a leader in semiconductor solutions. This innovative product is a testament to Texas Instruments' commitment to providing high-performance and reliable components for advanced power electronics applications.

At the heart of the LMG3410R070RWHT lies a 600 V GaN FET with an integrated driver and protection features. This integration not only simplifies the design process but also enhances system performance through reduced parasitic inductance and increased system reliability. The GaN technology employed in this module offers superior switching speeds and efficiency compared to traditional silicon-based solutions, making it an ideal choice for high-frequency and high-efficiency applications.

The LMG3410R070RWHT boasts a robust set of features that cater to a wide range of applications, including but not limited to, power supplies, motor drives, and inverters for renewable energy systems. Its fast switching capabilities enable compact and lightweight power electronics designs, which are particularly beneficial in space-constrained applications.

Key specifications of the LMG3410R070RWHT include:

• RDS(on) of 70 mOhm, ensuring low conduction losses.
• Integrated overtemperature and overcurrent protection, enhancing system safety and longevity.
• Zero reverse recovery charge (Qrr), minimizing switching losses and enabling high-efficiency operation.

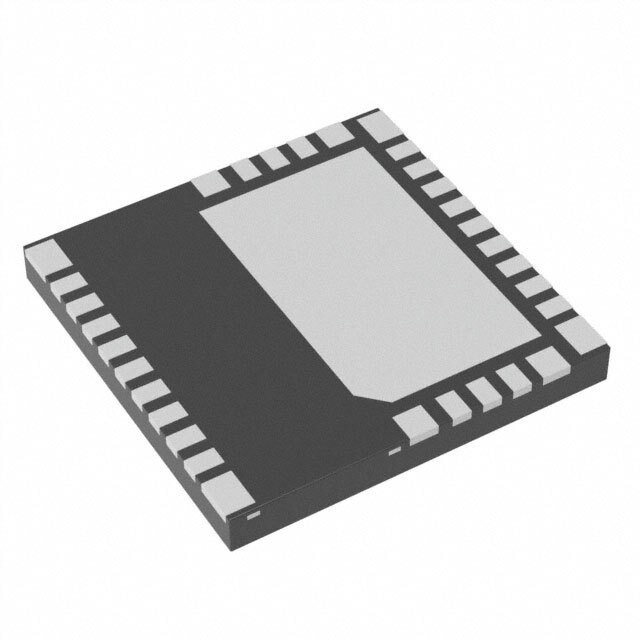

• A thermally enhanced 8x8 QFN package, providing excellent thermal performance and simplifying heat management.

Furthermore, the LMG3410R070RWHT is designed with ease of use in mind. It features a 5V VDD UVLO (Under Voltage Lock Out) for the gate driver, ensuring reliable operation even under fluctuating supply conditions. The module also provides a Kelvin source connection, which reduces gate ringing and improves switching performance.

For engineers and designers looking to leverage the benefits of GaN technology in their power systems, the LMG3410R070RWHT from Texas Instruments offers a compelling solution. Its combination of high performance, integration, and protection features make it a versatile and dependable choice for pushing the boundaries of power electronics design.
