Product Overview: LM5146RGYR from Texas Instruments

The LM5146RGYR from Texas Instruments is a highly efficient, synchronous buck regulator with advanced features to provide stable and reliable power supply in a variety of applications. This step-down voltage regulator is designed to convert a higher input voltage to a lower output voltage with a high degree of accuracy, flexibility, and efficiency.

The LM5146RGYR operates over a wide input range of 4.5V to 65V, which makes it suitable for use in industrial, automotive, and telecommunications power systems. It can handle continuous output currents up to several amps, depending on the external components and cooling methods used.

One of the key features of the LM5146RGYR is its dual N-channel MOSFET synchronous rectification, which significantly improves efficiency by reducing diode conduction losses. Additionally, this regulator offers programmable soft start and tracking, which allows for a controlled startup and the ability to sequence with other power rails. The switching frequency is also adjustable, giving designers the flexibility to optimize for efficiency or component size.

The LM5146RGYR incorporates a range of protection features to ensure the longevity and reliability of the application. These include thermal shutdown, overvoltage, undervoltage, and overcurrent protection. This robust protection scheme helps to safeguard the regulator and the downstream components from damage due to abnormal operating conditions.

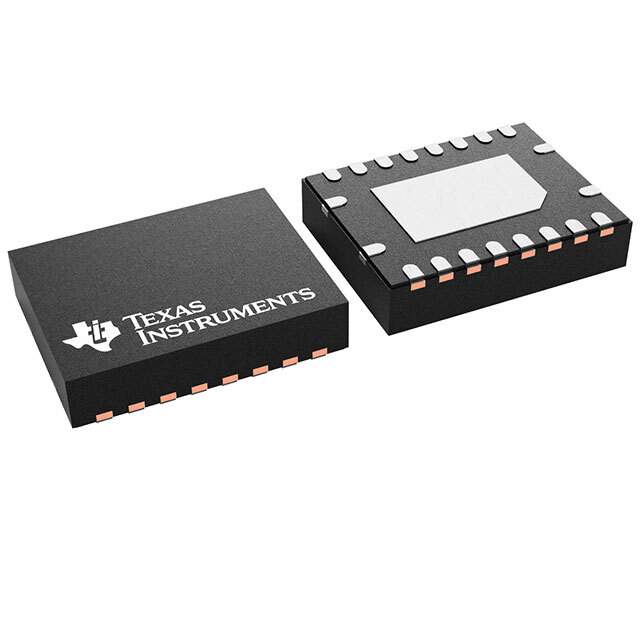

For ease of use, the LM5146RGYR is available in a compact QFN package, which is ideal for space-constrained applications. The thermal performance of this package is excellent, providing a good heat dissipation path for reliable operation over a wide temperature range.

In summary, the LM5146RGYR buck regulator from Texas Instruments is a versatile and efficient solution for a wide range of power conversion applications. With its advanced features and protection mechanisms, this regulator is well-suited to meet the stringent requirements of modern electronic systems.
