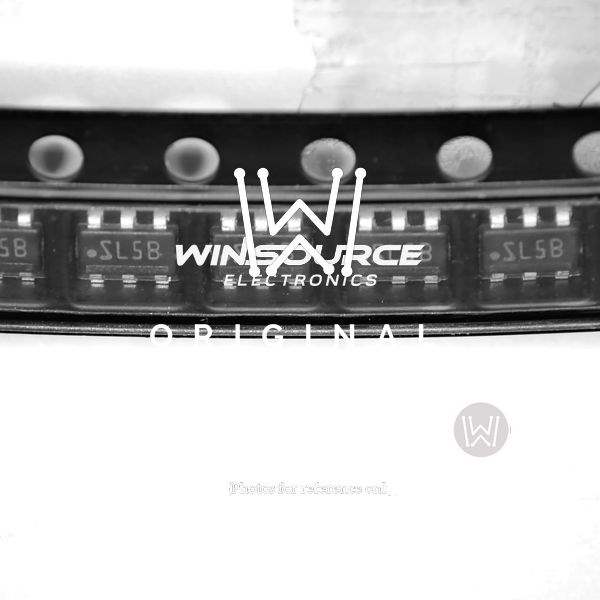

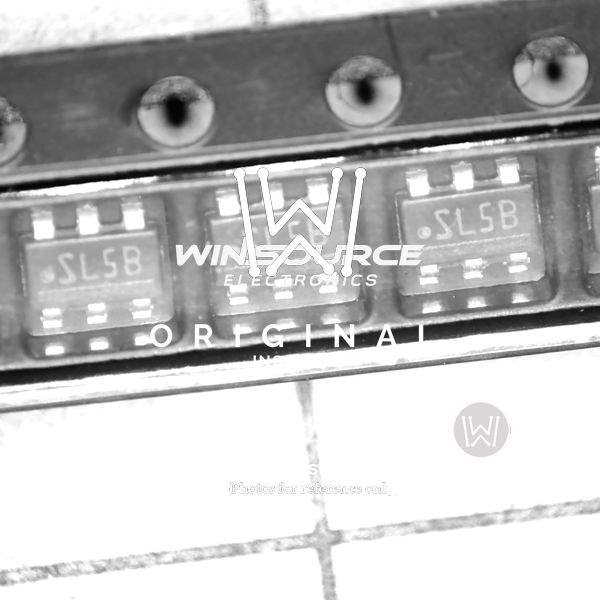

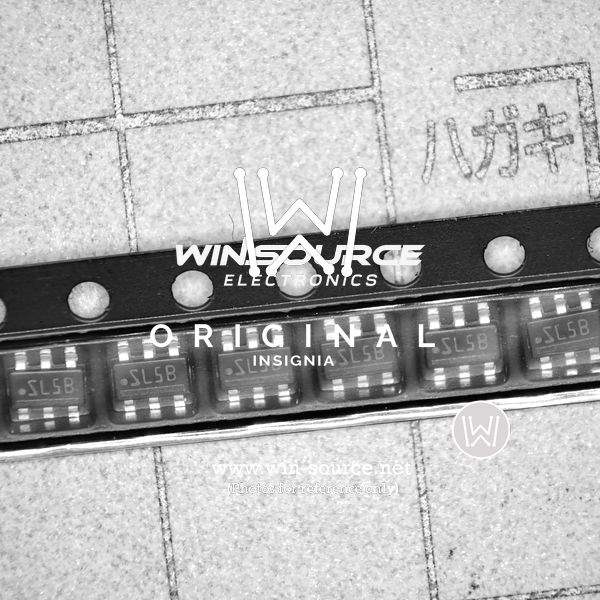

Product Overview: LM5050Q0MK-1/NOPB

The LM5050Q0MK-1/NOPB by Texas Instruments is a high-performance OR-ing diode controller designed to enhance power supply reliability. This device facilitates the seamless transition between two power sources, ensuring continuous operation even if one source fails. It is a quintessential component for systems that require redundancy, such as servers, telecom equipment, and data storage units.

The LM5050Q0MK-1/NOPB operates by controlling external N-channel MOSFETs, which replace traditional diodes in power distribution networks. This approach significantly reduces the power dissipation that would normally occur across a diode, resulting in improved system efficiency and reduced thermal stress. This feature makes it an ideal solution for applications where power efficiency is critical.

Packaged in a space-saving 6-pin SOT-23, the LM5050Q0MK-1/NOPB is optimized for compact designs, enabling designers to minimize board space without sacrificing performance. The device supports a wide range of input voltages, from 5.5V to 75V, providing versatility in various application scenarios. Additionally, it boasts a fast turn-off feature that protects the MOSFETs during a reverse current event.

The LM5050Q0MK-1/NOPB also includes an integrated charge pump to fully enhance the gate of the external MOSFET, ensuring that it operates at the lowest possible on-resistance. This feature, coupled with its ability to operate at high frequencies, makes the device suitable for high-speed and high-density power supply designs.

Safety and reliability are paramount in power management, and the LM5050Q0MK-1/NOPB addresses this with built-in under-voltage lockout (UVLO) and over-temperature protection. These protective measures help to prevent damage to the system under abnormal operating conditions, thereby enhancing the overall durability of the end product.

In conclusion, the LM5050Q0MK-1/NOPB from Texas Instruments is an advanced power management solution that offers efficiency, reliability, and design flexibility for a wide array of applications. Its robust feature set and compact form factor make it an excellent choice for designers looking to improve their power supply designs.
