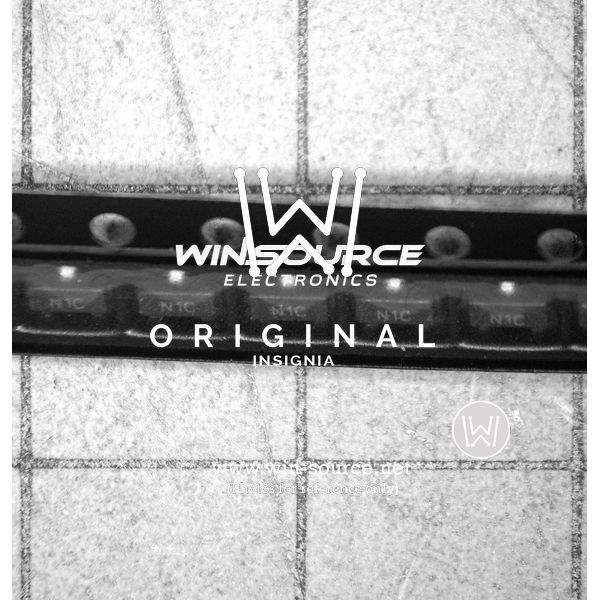

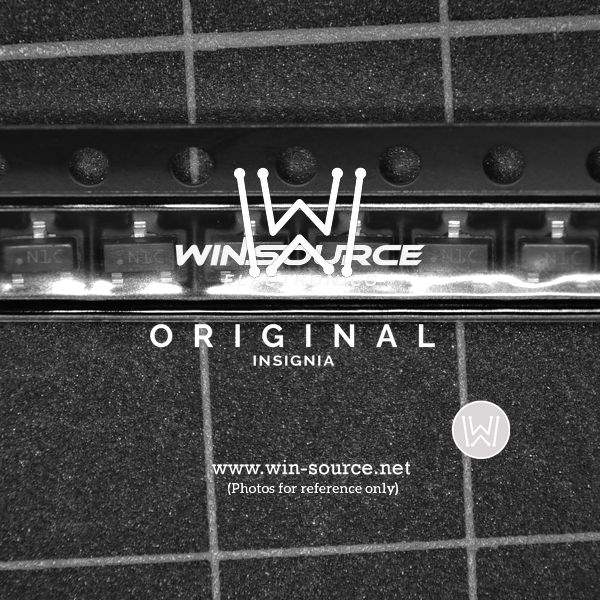

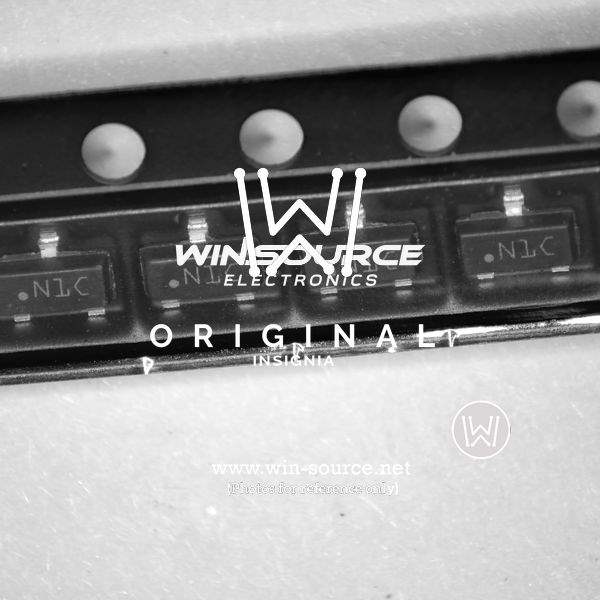

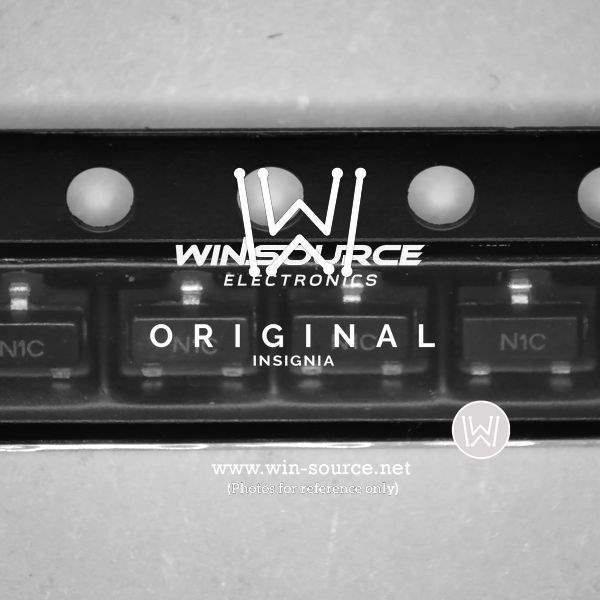

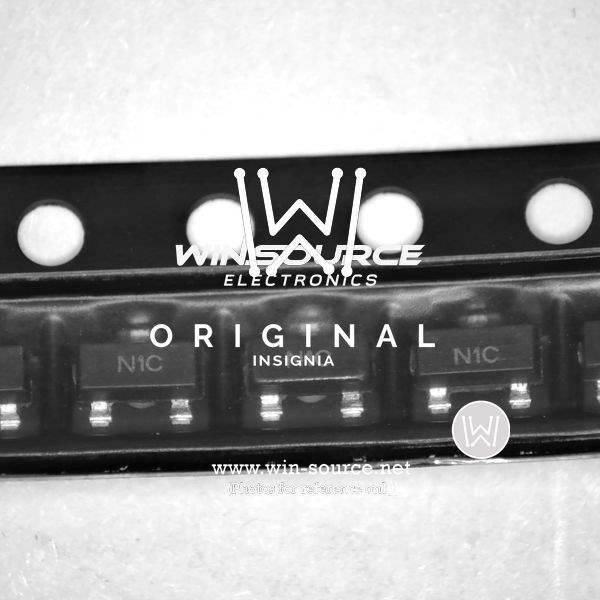

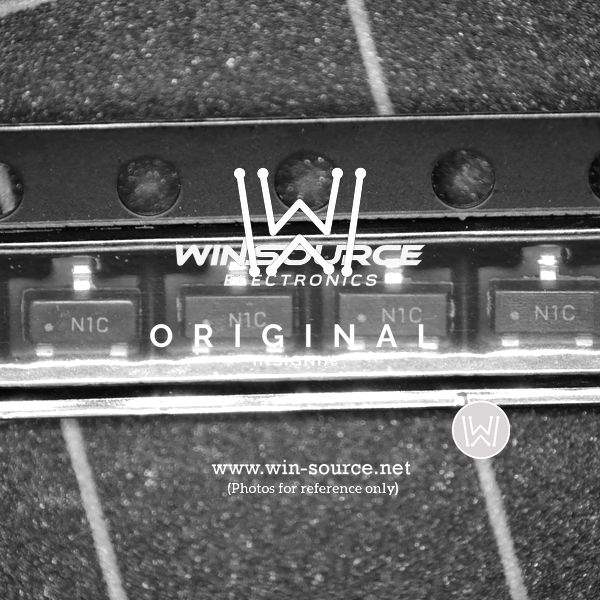

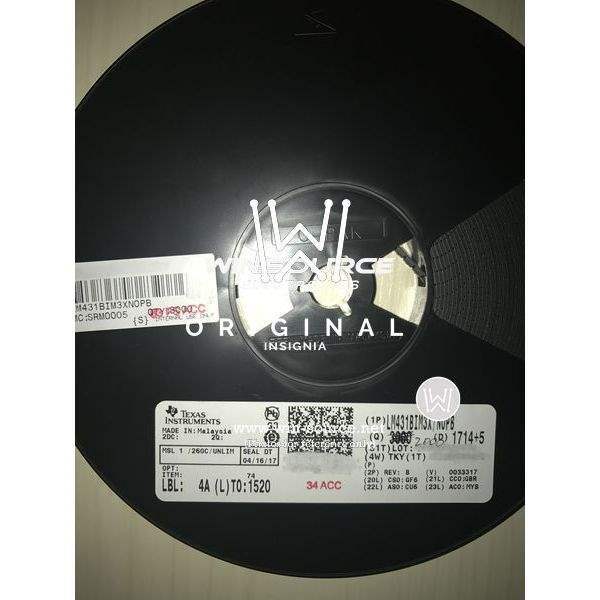

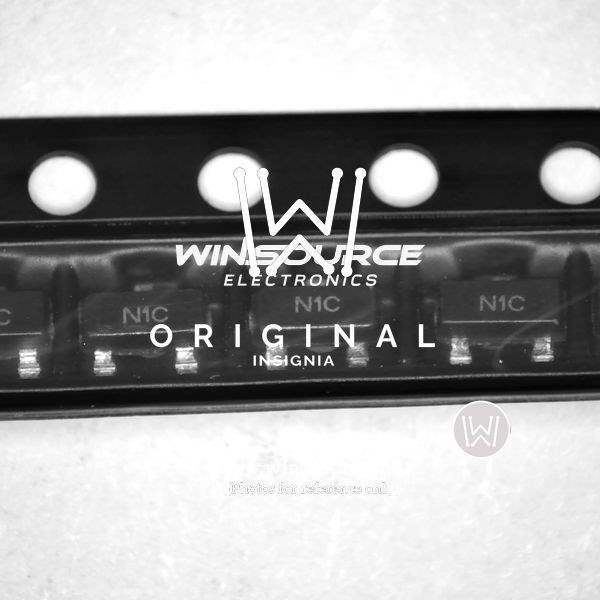

LM431BIM3X Texas Instruments LM431BIM3X Real Image LM431BIM3X label picture LM431BIM3X real image1554 LM431BIM3X Real Image1 LM431BIM3X Real Image2 LM431BIM3X Real Image3 LM431BIM3X Real Image4 LM431BIM3X Real Image5 LM431BIM3X Real Image6
Same model may have multiple batches, images only for reference.
LM431BIM3X Texas Instruments LM431BIM3X Real Image LM431BIM3X label picture LM431BIM3X real image1554 LM431BIM3X Real Image1 LM431BIM3X Real Image2 LM431BIM3X Real Image3 LM431BIM3X Real Image4 LM431BIM3X Real Image5 LM431BIM3X Real Image6
LM431BIM3X Texas Instruments LM431BIM3X Real Image LM431BIM3X label picture LM431BIM3X real image1554 LM431BIM3X Real Image1 LM431BIM3X Real Image2 LM431BIM3X Real Image3 LM431BIM3X Real Image4 LM431BIM3X Real Image5 LM431BIM3X Real Image6
Same model may have multiple batches, images only for reference.

LM431BIM3X

Part No LM431BIM3X
Manufacturer Texas Instruments
Catalog PMIC - Voltage Reference
Description IC VREF SHUNT ADJ SOT23-3
Datasheet
LM431BIM3X Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Reference Type Shunt
Output Type Adjustable
Nominal Output Voltage (Min/Fixed) 2.495V
Maximum Output Voltage 37V
Output Current 100mA
Tolerance ±1%
Temperature Coefficient 50ppm/°C Typical
Current - Cathode 1mA
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package SOT-23-3
Win Source Part Number 094824-LM431BIM3X
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LM431BIM3X CAD Model

Description

The LM431BIM3X from Texas Instruments is a versatile and highly efficient precision programmable shunt voltage reference.

  • Operating Current Range: 1.0 mA to 100 mA
  • Specified Dynamic Impedance: less than 0.2Ω
  • Typical Output Impedance: 0.5 ohms
  • Output Voltage: Can be set to any value between Vref (approximately 2.5V) and 36V
