The LM3533TME-40/NOPB is a highly integrated, mixed-signal LED driver designed to provide a full range of power and control features for smartphones, tablets, and other handheld devices. Manufactured by Texas Instruments, this component is engineered to offer exceptional performance in managing backlighting and light-emitting diode (LED) lighting applications.

Key Features

• Adaptive Voltage Scaling (AVS): The LM3533TME-40/NOPB utilizes AVS to adjust the supply voltage to the LEDs according to the required brightness level, optimizing power efficiency.
• Multiple LED Outputs: This device supports up to four independently controlled LED outputs, providing flexibility for various lighting configurations.
• Integrated Boost Converter: An on-chip boost converter is included to supply the necessary voltage for driving LEDs at higher voltages than the battery can provide.
• Programmable Current Sinks: The LED current sinks are programmable, allowing for precise control of the LED brightness levels.
• Ambient Light Sensing (ALS): With an integrated ALS interface, the LM3533TME-40/NOPB can adjust the backlight brightness in response to the surrounding light conditions, enhancing the user experience and conserving battery life.

Applications

The LM3533TME-40/NOPB is ideal for a range of applications that require high-quality LED backlighting. This includes, but is not limited to:

• Smartphones and Tablets
• Portable Navigation Devices
• Personal Media Players
• Handheld Gaming Devices

Quality and Reliability

Texas Instruments is known for its commitment to quality, and the LM3533TME-40/NOPB is no exception. It is designed to meet the rigorous standards required by portable device manufacturers, ensuring reliable performance and longevity. The NOPB designation indicates that this product is lead-free, making it suitable for use in RoHS-compliant applications.

Package and Availability

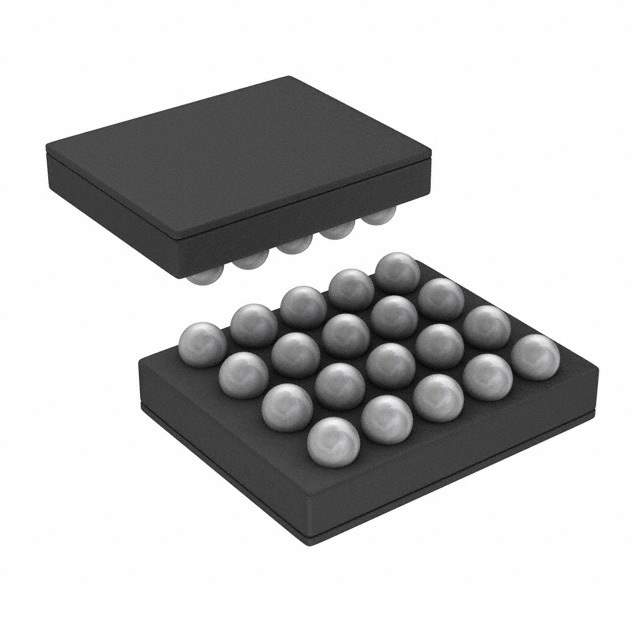

The LM3533TME-40/NOPB comes in a compact, surface-mount package that is ideal for space-constrained applications. Its availability may vary, so customers are encouraged to check with Texas Instruments or authorized distributors for current stock and ordering information.
