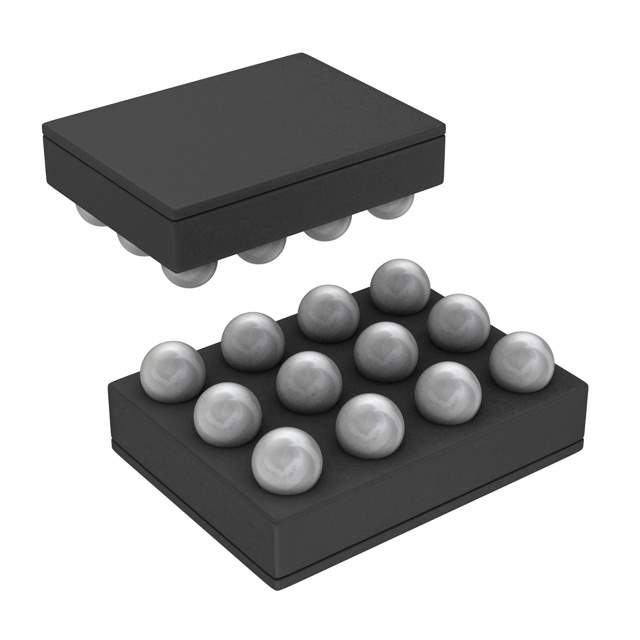

LM3528TMX Real Image
Same model may have multiple batches, images only for reference.

LM3528TMX

Part No LM3528TMX
Manufacturer Texas Instruments
Catalog PMIC - LED Drivers
Description IC LED DRIVER RGLTR DIM 12DSBGA
Datasheet
LM3528TMX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Type DC DC Regulator
Topology Step-Up (Boost)
Internal Switch(s) Yes
Number of Outputs 2
Operating Input Voltage(Min) 2.5V
Maximum Supply Voltage 5.5V
Output Voltage 22V
Channel Output Current 20mA
Frequency 1.25MHz
Dimming I2C
Applications Backlight
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 12-DSBGA
Win Source Part Number 071260-LM3528TMX
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LM3528TMX CAD Model

Description

The LM3528TMX is a highly advanced and efficient LED driver produced by Texas Instruments, a renowned global semiconductor company.

  • Regulated Current Sources: Two regulated current sources that can drive up to five white LEDs for the main display backlight and two white LEDs for the sub-display or auxiliary backlight.
  • Brightness Control Interfaces: An I2C-compatible interface and a pulse width modulation (PWM) input.
  • Output Current Limit: Built-in safety feature that limits the output current in case of a fault condition.
  • Automatic Soft-Start: Gradually increases the LED current when the device is enabled.
  • Input Voltage Range: 2.7V to 5.5V
  • Package: Small, lead-free, 12-bump micro SMD package
