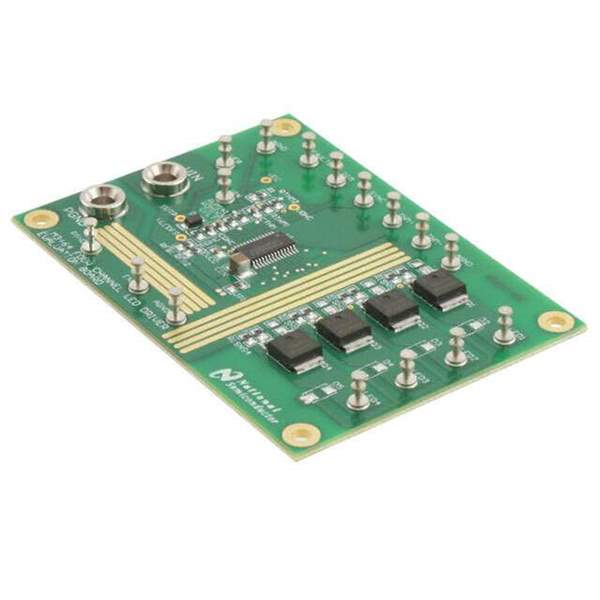

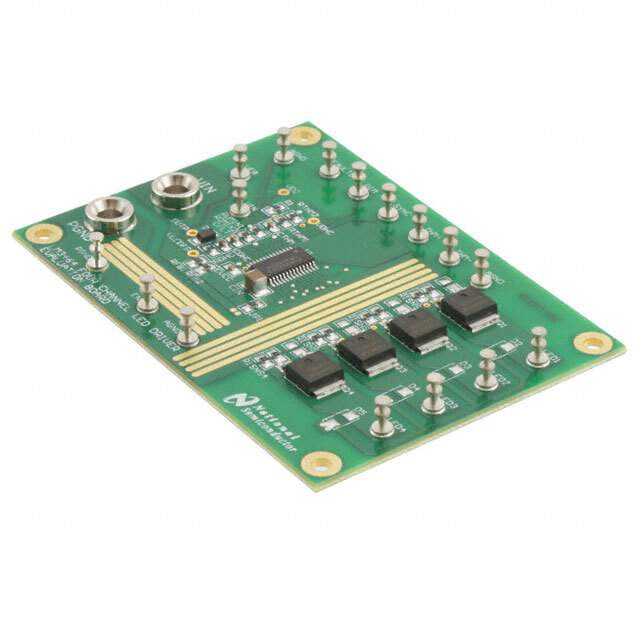

Product Overview: LM3464EVAL/NOPB

The LM3464EVAL/NOPB is an evaluation board designed by Texas Instruments (TI) to showcase the capabilities of the LM3464 multi-string LED driver with dynamic headroom control. This evaluation platform is specifically created to simplify the assessment and development process for lighting solutions that require high-efficiency, multi-string LED drivers.

Key Features

• Dynamic Headroom Control: The LM3464 integrates a novel control method to adjust the LED string voltage dynamically, ensuring maximum efficiency and power conservation.
• Multi-String LED Driver: Capable of driving up to four individual LED strings, providing flexibility and scalability for various lighting configurations.
• Wide Input Voltage Range: Designed to operate over a broad input voltage range, accommodating various power supply specifications.
• Thermal Management: Features built-in thermal shutdown protection, safeguarding the system against overheating conditions.

Applications

The LM3464EVAL/NOPB is ideally suited for a wide range of lighting applications, including:

• Street lighting
• Commercial lighting
• Industrial lighting
• High bay lighting

Technical Specifications

The evaluation board comes with the following specifications:

• Part Number: LM3464EVAL/NOPB
• Manufacturer: Texas Instruments
• Category: Power Management
• Subcategory: LED Driver
• RoHS: Compliant

Design and Layout

The LM3464EVAL/NOPB is designed with a user-friendly layout, ensuring ease of use for both novice and experienced engineers. It includes connectors and test points for convenient access to all critical signals and power nodes. Furthermore, the board is equipped with jumpers and trim pots, allowing for easy configuration and adjustment of operating parameters.

Support and Resources

TI provides comprehensive support for the LM3464EVAL/NOPB, including detailed documentation, reference designs, and technical support from their engineering community. This ensures that users can maximize the potential of the evaluation board and accelerate the development of their LED lighting solutions.
