The LM2794TL from Texas Instruments is a versatile, high-performance white LED driver designed to provide a comprehensive solution for display backlighting and keypad backlighting in portable devices. This compact and efficient device is engineered to enhance the visual experience on mobile phones, PDAs, portable gaming devices, and other handhelds that require uniform illumination.

Key Features:

• Adaptive 1x/1.5x/2x Charge Pump: The LM2794TL utilizes a charge pump that can adaptively switch between 1x, 1.5x, and 2x modes, ensuring optimal efficiency and consistent brightness, even as the battery voltage changes.
• High Efficiency: This device is designed to maximize battery life with high efficiency, which is crucial for portable applications where power consumption is a critical concern.
• Dimming Control: It offers a wide range of dimming capabilities, enabling precise brightness control to cater to user preferences and ambient light conditions.

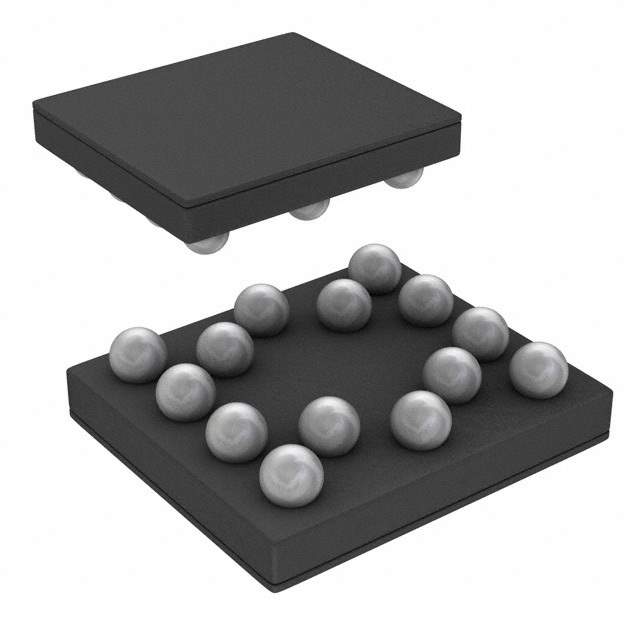

• Small Footprint: The LM2794TL comes in a tiny package, making it an ideal choice for space-constrained applications.

Performance Specifications:

• Input Voltage Range: 2.7V to 5.5V, accommodating a variety of power sources.
• Drive Capability: Capable of driving up to 6 LEDs in series, providing flexibility in backlight design.
• Protection Features: Built-in over-voltage, thermal, and short-circuit protection mechanisms ensure reliable operation and longevity of the device and the LEDs it drives.

Applications:

The LM2794TL is ideal for a wide range of applications, including:

• Mobile Phones and Smartphones
• Personal Digital Assistants (PDAs)
• Portable Gaming Devices
• Other Handheld Devices

With its combination of efficiency, adaptability, and compact size, the LM2794TL from Texas Instruments stands out as a top choice for designers looking to enhance the user experience with superior display and keypad backlighting solutions.
