The LM2724LD from Texas Instruments is a high-speed, low-side N-channel MOSFET driver designed to deliver excellent performance and efficiency. This driver is capable of driving a 1nF load with large peak currents at high speeds, making it an ideal choice for a variety of applications, including switch-mode power supplies, motor controllers, and high-speed power switching circuits.

Key Features

• High Peak Output Current: The LM2724LD can provide a peak current of up to 7.6A, ensuring robust drive capability for your power MOSFETs.
• Fast Propagation Delays: With a propagation delay typically under 15ns, this driver ensures swift response times for critical applications.
• Wide Supply Voltage Range: Operating from a supply voltage range of 4.5V to 14V, the LM2724LD is versatile and can be used in a variety of system voltages.
• Low Supply Current: It has a low supply current of 0.3mA, which helps reduce power consumption and improve overall efficiency.
• Output In-Phase with Input: The output signal is in-phase with the input, simplifying the design of the drive circuitry.
• Thermal Shutdown: Built-in thermal shutdown provides additional protection for the device under extreme operating conditions.

Applications

• Switch-Mode Power Supplies (SMPS)
• DC-DC Converters
• Motor Control Circuits
• Class D Switching Amplifiers
• Power Inverters

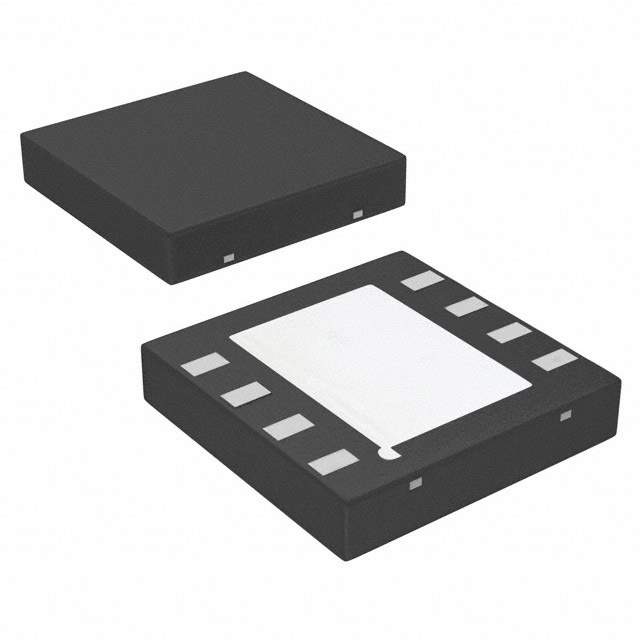

The LM2724LD is available in an 8-pin LLP (Leadless Leadframe Package) that offers a compact footprint and good thermal performance. Its robust design ensures reliability and durability across a wide range of environmental conditions. Whether you're designing a new power system or upgrading an existing one, the LM2724LD provides the drive strength and speed you need for efficient operation.

For detailed specifications, application notes, and design resources, visit the Texas Instruments website to access comprehensive technical documentation for the LM2724LD.
