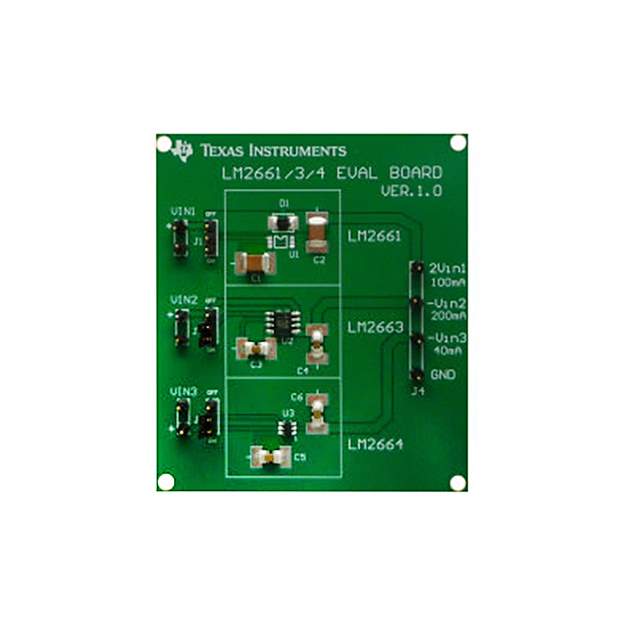

The LM2661/3/4EVAL/NOPB is an evaluation board designed by Texas Instruments to facilitate the testing and performance analysis of the LM266x series of switched capacitor voltage converters. This evaluation board serves as a robust platform for engineers and designers to explore the features and capabilities of these voltage converters in real-world applications.

Key Features

• Versatile Power Management: The LM266x family of voltage converters are capable of efficiently managing power with a wide input voltage range, making them suitable for a variety of battery-operated and portable devices.
• Switched Capacitor Technology: Utilizing switched capacitor technology, these converters offer a simple and efficient method to invert or double an input voltage while minimizing the need for external components.
• High-Efficiency Operation: The evaluation board demonstrates the high-efficiency operation of the LM266x series, reducing power loss and improving overall system performance.
• Compact and User-Friendly Design: Designed with the user in mind, the LM2661/3/4EVAL/NOPB evaluation board is compact and features convenient test points and jumper settings for easy configuration and testing.

Applications

The evaluation board is ideal for exploring applications that include, but are not limited to:

• Portable electronics
• Battery-powered devices
• Energy harvesting systems
• Negative voltage generation

Technical Specifications

The LM2661/3/4EVAL/NOPB evaluation board is designed to showcase the technical specifications of the LM266x series, including:

• Low voltage operation with minimal external components
• High power efficiency for extended battery life
• Stable voltage conversion for sensitive electronics

Support and Resources

Texas Instruments provides comprehensive support and resources for the LM2661/3/4EVAL/NOPB evaluation board, including detailed datasheets, application notes, and design tools. Customers can access these resources on the Texas Instruments website to facilitate the design process and maximize the use of the evaluation board.
