Product Overview: LM26420XMHEVAL/NOPB

The LM26420XMHEVAL/NOPB is an evaluation board designed by Texas Instruments to facilitate the testing and performance evaluation of the LM26420 regulator, a dual 2A output, high-efficiency synchronous step-down DC/DC converter. This evaluation kit is an essential tool for engineers and designers who wish to incorporate the LM26420 regulator into their power management solutions for portable and space-constrained applications.

Key Features

• Dual Channel Output: The LM26420 regulator provides two independent output channels, each capable of delivering up to 2A of continuous current, making it ideal for systems that require multiple regulated voltages.
• High Efficiency: With synchronous buck topology, the LM26420 achieves high conversion efficiency, which is crucial for extending battery life in portable devices.
• Adjustable Output Voltage: The output voltage of each channel can be adjusted through external resistors, offering design flexibility to match specific application requirements.
• Thermal Protection: The device includes thermal shutdown protection, safeguarding the regulator and the system from damage due to overheating.
• Frequency Synchronization: The switching frequency of the LM26420 can be synchronized to an external clock to minimize electromagnetic interference (EMI) in sensitive applications.

Applications

The LM26420XMHEVAL/NOPB evaluation board is suited for a broad range of applications, including:

• Portable and battery-powered equipment
• Wireless LAN and networking devices
• Set-top boxes and digital TVs
• FPGA and DSP power supplies

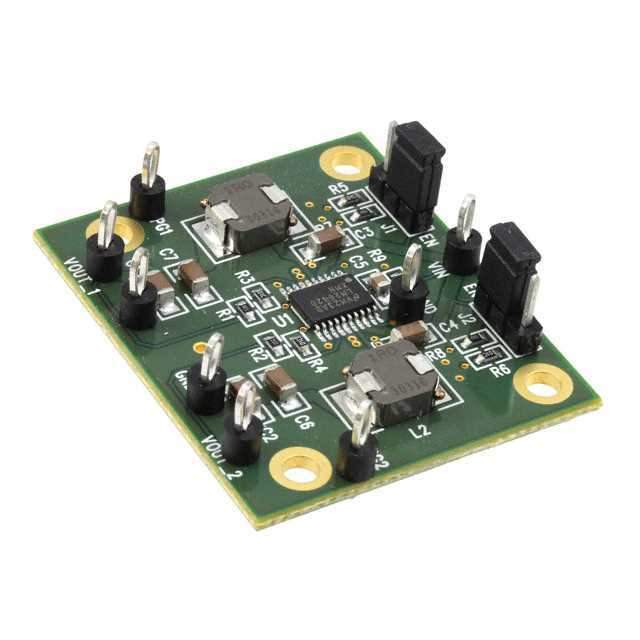

Design and Layout

The evaluation board is designed with a compact layout to mimic a typical application circuit, providing an accurate representation of the LM26420's performance in real-world scenarios. It includes test points and jumpers for easy measurement and configuration of the regulator's features. The board is also equipped with the necessary input and output capacitors to ensure stability and minimize output voltage ripple.

Getting Started

With the LM26420XMHEVAL/NOPB, designers can quickly set up the evaluation board, apply power, and observe the regulator's performance. The accompanying documentation provides comprehensive guidelines for operation, including recommended input and output capacitor values, inductor selection, and layout considerations to optimize performance and minimize noise.

Whether you're developing power solutions for consumer electronics, industrial systems, or telecommunications, the LM26420XMHEVAL/NOPB evaluation board is a valuable asset for validating the functionality and efficiency of the LM26420 regulator in your designs.
