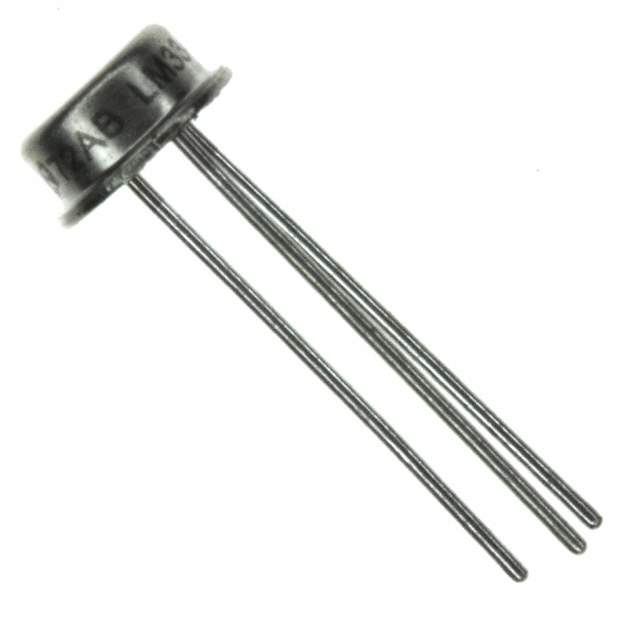

LM136AH-2.5 Real Image
Same model may have multiple batches, images only for reference.

LM136AH-2.5

Part No LM136AH-2.5
Manufacturer Texas Instruments
Catalog PMIC - Voltage Reference
Description IC VREF SHUNT 2.49V TO46-3
Datasheet
LM136AH-2.5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Bulk
Status Active
Reference Type Shunt
Output Type Fixed
Nominal Output Voltage (Min/Fixed) 2.49V
Output Current 10mA
Tolerance ±1%
Current - Cathode 400μA
Temperature Range - Operating -55°C to 125°C (TA)
Mounting Through Hole
Case / Package TO (NDT)
Win Source Part Number 128610-LM136AH-2.5
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LM136AH-2.5 CAD Model

Description

The LM136AH-2.5 from Texas Instruments is a high-performance, precision voltage reference product.

  • Output Voltage: Fixed 2.5V output voltage
  • Precision: 1% over a wide temperature range
  • Package: TO-46 metal can package
  • Current Range: 1.0 mA to 10 mA
  • Power Dissipation: Maximum 800mW
  • Dynamic Impedance: Low dynamic impedance
  • Load Regulation: Good load regulation
  • Temperature Range: -55°C to +125°C
  • Temperature Stability: Temperature coefficient of only 30ppm/°C
  • Output Noise Reduction: High level of output noise reduction
  • Long-Term Stability: Long-term stability of 20ppm/1000 hours @ 125°C
  • RoHS Compliant: Yes
