Products specifications Report Issue?

Category Isolators - Digital Isolators
Mfr Texas Instruments
Package Tube
Product Status Active
Technology Capacitive Coupling
Type General Purpose
Isolated Power No
Number of Channels 4
Inputs - Side 1/Side 2 3/1
Channel Type Unidirectional
Voltage - Isolation 5700Vrms
Common Mode Transient Immunity (Min) 100kV/µs
Data Rate 100Mbps
Propagation Delay tpLH / tpHL (Max) 16ns, 16ns
Pulse Width Distortion (Max) 4.1ns
Rise / Fall Time (Typ) 1.7ns, 1.9ns
Voltage - Supply 2.25V ~ 5.5V
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Surface Mount
Package / Case 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package 16-SOIC
Base Product Number ISO7841
Standard Package 40 pcs
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 875997-ISO7841DW
Ultra Librarian 3D Model Ultra Librarian ISO7841DW CAD Model

Description

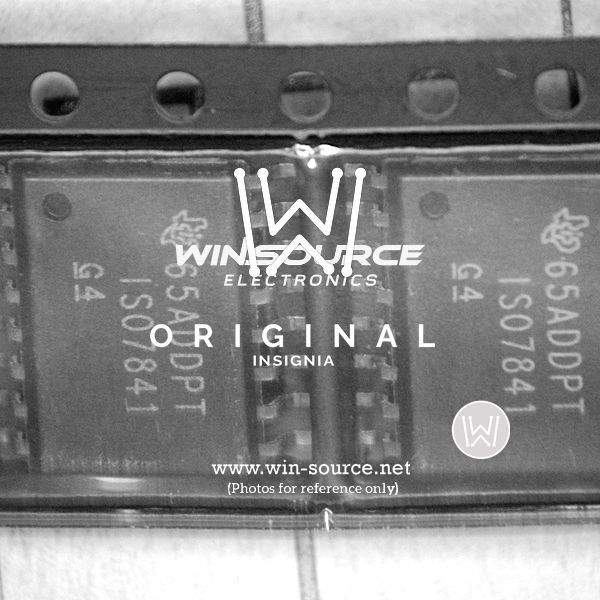

The ISO7841DW from Texas Instruments is a high-performance, quad-channel digital isolator designed to provide robust signal isolation for a wide range of applications. This cutting-edge device is capable of transferring digital signals between circuits with different power domains while maintaining a high level of electrical isolation.

Key Features:

  • High Isolation Voltage: With an isolation voltage of 5000 Vrms, the ISO7841DW ensures that your circuits remain protected from high-voltage spikes and surges, making it ideal for industrial, medical, and other applications requiring stringent isolation specifications.
  • High-Speed Data Transfer: This isolator supports data rates up to 100 Mbps, enabling high-speed communication without compromising the integrity of your data.
  • Low Propagation Delay: The device features a low propagation delay, typically 11 ns, which is crucial for applications where timing is critical.
  • Robust Electromagnetic Compatibility (EMC): Designed with high noise immunity, the ISO7841DW meets or exceeds industry standards for EMC, ensuring reliable performance in electrically noisy environments.
  • Quad-Channel Configuration: The four independent isolation channels can be used in various configurations, such as four forward channels, three forward channels and one reverse channel, or two forward and two reverse channels, providing design flexibility.
  • Wide Temperature Range: It operates over a wide temperature range from -40°C to +125°C, suitable for extreme industrial environments.

Applications:

The ISO7841DW is ideal for use in a variety of applications, including:

  • Industrial automation and control systems
  • Medical equipment with patient electrical isolation
  • Motor control circuits
  • Power supplies and inverters
  • Data communication systems

Package and Quality:

The isolator comes in a 16-pin SOIC wide-body package, providing a compact solution that is easy to integrate into your existing designs. Texas Instruments' commitment to quality ensures that the ISO7841DW meets the highest reliability and performance standards.
