ISO7221MDRG4 Digital Isolator by Texas Instruments

The ISO7221MDRG4 is a robust, high-performance digital isolator designed by Texas Instruments to cater to a wide range of applications requiring signal isolation. This component is part of Texas Instruments' ISO722x family, known for its reliability and efficiency in breaking ground loops and providing protection against high voltage transients.

Key Features

• Dual-Channel Isolation: The ISO7221MDRG4 features two independent isolation channels, which can be used in either direction, providing flexibility in design.
• High-Speed Operation: With a signaling rate of up to 150 Mbps, this digital isolator is suitable for high-speed data transmission without significant signal degradation.
• Low Power Consumption: Designed for energy efficiency, the ISO7221MDRG4 operates with low power consumption, making it ideal for power-sensitive applications.
• Robust Isolation: It offers a high isolation voltage of 4000 V_peak per UL 1577, ensuring reliable operation in environments with high voltage spikes or noise.
• Wide Temperature Range: The device is operational over a broad temperature range from -40°C to +125°C, accommodating various industrial and automotive temperature requirements.

Applications

The ISO7221MDRG4 digital isolator is suitable for various applications, including:

• Industrial automation and control systems
• Motor control circuits
• Data communication for field instruments
• Medical equipment with patient electrical isolation
• Power supply management

Package and Quality

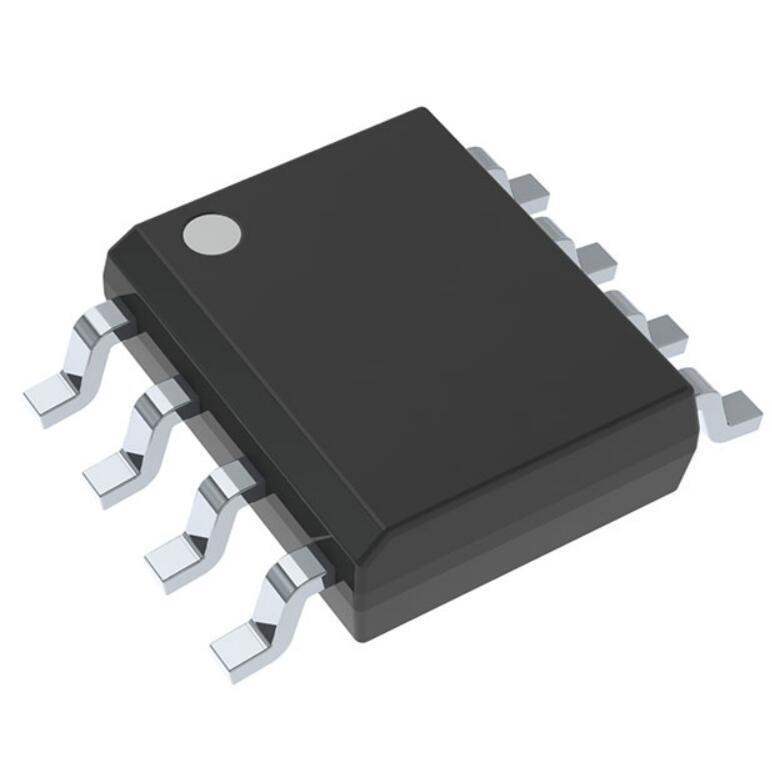

Encased in a compact 8-pin SOIC package, the ISO7221MDRG4 digital isolator is designed for space-constrained applications. It is manufactured following strict industry standards, ensuring high reliability and performance. The device is also RoHS compliant and adheres to lead-free manufacturing processes, reflecting Texas Instruments' commitment to environmental sustainability.
