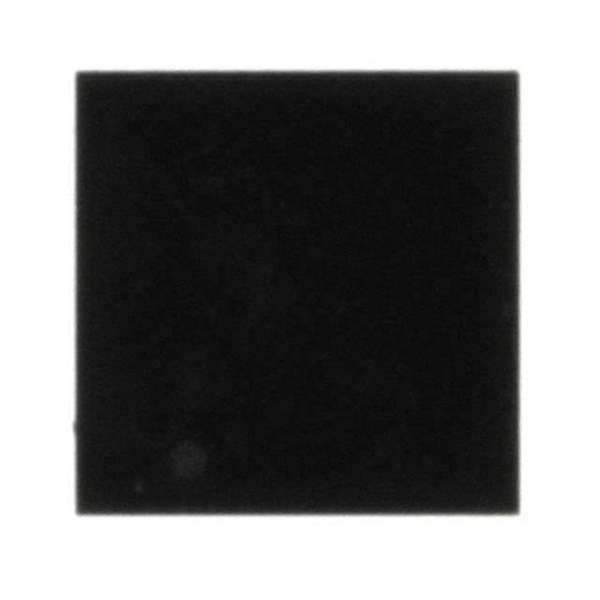

The INA826AIDRGT from Texas Instruments is a high-precision instrumentation amplifier that is designed to offer excellent accuracy and low noise in a wide range of applications. With its small footprint in an MSOP-8 package, this device is ideal for space-constrained applications requiring high-performance signal conditioning.

Key Features:

• Low Offset Voltage: The INA826AIDRGT boasts a low offset voltage of only 25 µV (max) at +25°C, which is critical for precision measurement applications.
• Wide Supply Range: It operates over a wide single-supply range from 2.7V to 36V, or dual supplies of ±1.35V to ±18V, providing flexibility in various supply environments.
• High Gain Accuracy: With a gain accuracy of 0.10% (max) and a gain drift of just 5 ppm/°C, this amplifier ensures stable performance across a range of temperatures.
• Low Noise: A low input noise density of 8 nV/√Hz at 1 kHz minimizes signal distortion and makes it suitable for noise-sensitive applications.
• High Common-Mode Rejection Ratio (CMRR): With a CMRR of 114 dB (min) at G=100, the INA826AIDRGT can effectively minimize the influence of unwanted common-mode signals.
• Rail-to-Rail Output: The rail-to-rail output stage provides increased dynamic range, which is especially useful when operating with low supply voltages.

Applications:

The INA826AIDRGT is versatile and can be used in a variety of applications, including:

• Medical instrumentation such as ECG and non-invasive blood pressure monitors.
• Precision data acquisition systems, including weigh scales and transducer interfaces.
• Industrial process controls and monitoring equipment.
• Battery-powered and portable devices due to its low power consumption.

With its combination of precision, low power, and ease of use, the INA826AIDRGT instrumentation amplifier is a reliable choice for designers looking to enhance the performance of their sensor measurement and data acquisition systems.
