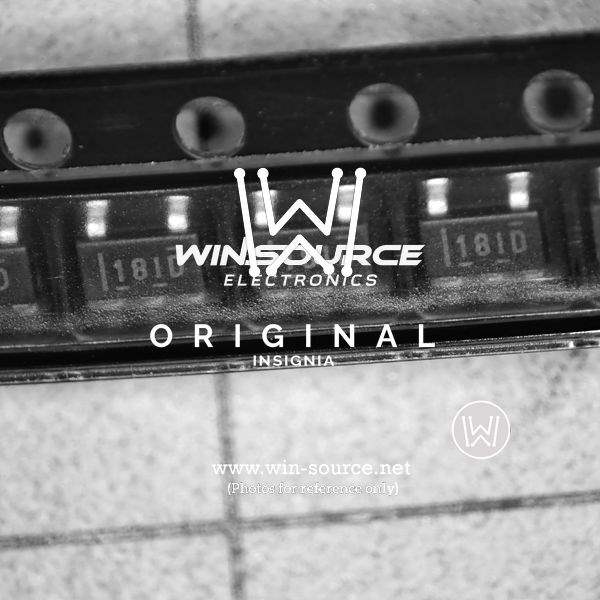

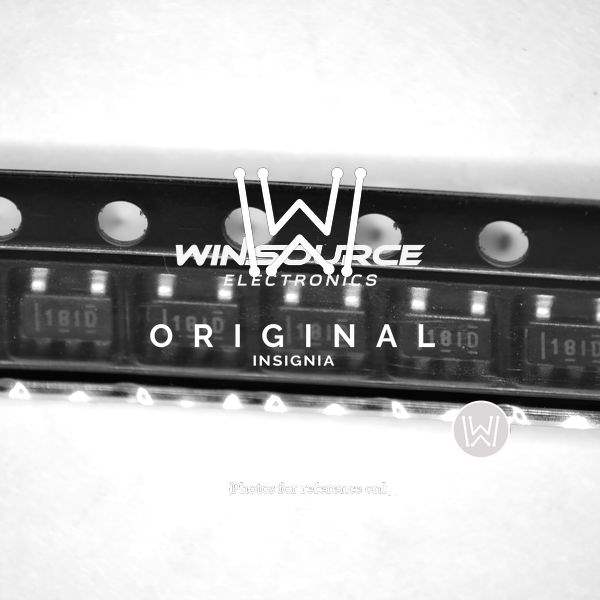

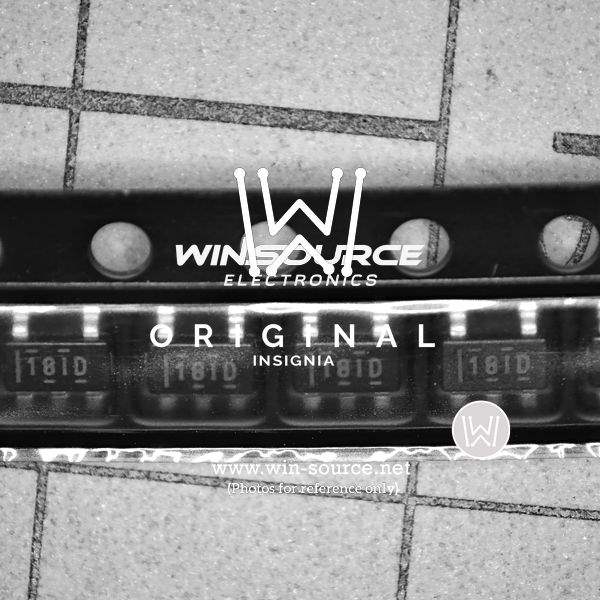

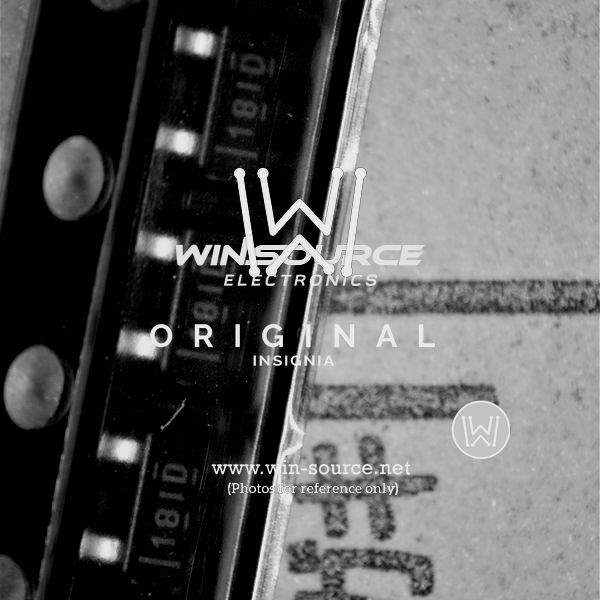

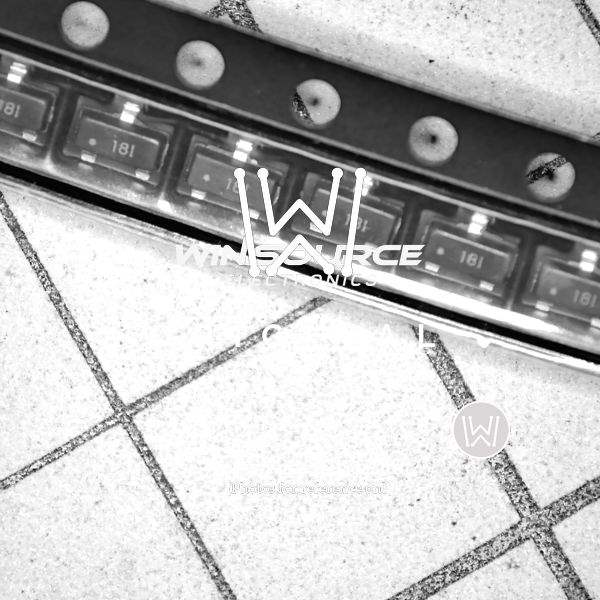

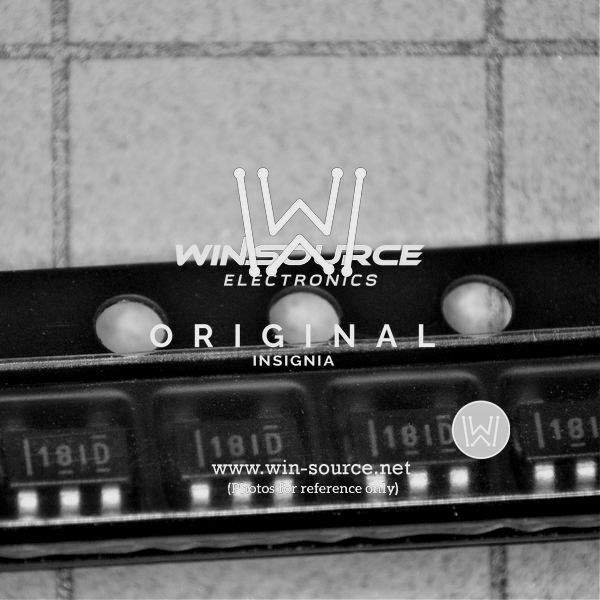

Product Overview: INA180A1IDBVR by Texas Instruments

The INA180A1IDBVR is a high-precision current sense amplifier from Texas Instruments, designed to provide a versatile solution for accurate current measurement in a wide array of applications. This device is part of the INA180 series, which is known for its low power consumption and ease of use in current sensing applications.

Key Features

• High Accuracy: The INA180A1IDBVR offers a gain of 20 V/V, enabling precise current measurement with minimal error, making it ideal for precision-sensitive applications.
• Low Power Consumption: With a quiescent current of only 260 µA (typical), this current sense amplifier is well-suited for battery-powered and energy-efficient systems.
• Wide Supply Range: It operates over a broad supply voltage range of 2.7 V to 5.5 V, allowing for flexible integration into various circuit designs.
• Small Package: Housed in a compact SOT-23 package, the INA180A1IDBVR is optimized for space-constrained applications.

Applications

The INA180A1IDBVR is a versatile component that can be used in a variety of applications, including but not limited to:

• Power management in consumer electronics such as smartphones, laptops, and wearables
• Overcurrent protection circuits
• Battery chargers and management systems
• Portable and handheld devices
• Automotive systems, including battery monitoring and energy management

Performance and Reliability

Designed with the quality and reliability that Texas Instruments is known for, the INA180A1IDBVR ensures stable performance over a temperature range of -40°C to +125°C. Its robust design makes it suitable for both industrial and consumer applications where accurate and reliable current sensing is critical.

Whether you're designing a power supply, battery management system, or any other application requiring precise current measurement, the INA180A1IDBVR from Texas Instruments provides a high-performance solution that you can trust.
