Overview of Texas Instruments FDC2212DNTT

The Texas Instruments FDC2212DNTT is a high-precision, capacitive sensing integrated circuit designed for contactless sensing applications. This innovative sensor IC is part of TI's FDC2x1x family, which is known for its ability to detect and measure the capacitance of a target with high accuracy. The FDC2212DNTT specifically excels in applications where the presence, position, or composition of a conductive or dielectric target needs to be detected with precision.

Key Features

• High-Resolution Sensing: The FDC2212DNTT offers a 28-bit resolution, providing highly accurate sensing capabilities for a wide range of applications.
• Noise Immunity: Designed with noise immunity in mind, it operates reliably in noisy environments, making it suitable for industrial and consumer applications.
• Multi-Channel Configuration: It features two capacitive input channels, allowing for the monitoring of two sensors simultaneously or the implementation of differential sensing to reduce common-mode noise.
• Low Power Consumption: The device is optimized for low power consumption, which is ideal for battery-powered or energy-efficient systems.
• Automatic Calibration: With built-in automatic calibration, the FDC2212DNTT ensures consistent performance over time and temperature variations.

Applications

The FDC2212DNTT is versatile and can be used in a variety of applications, including:

• Proximity sensing for consumer electronics
• Fluid level detection in industrial systems
• Position sensing in robotics and automation
• Material composition analysis in quality control processes
• Human-machine interface (HMI) devices where non-contact interaction is required

Technical Specifications

Some of the key technical specifications of the FDC2212DNTT include:

• Supply Voltage Range: 2.7V to 3.6V
• Communication Interface: I²C
• Operating Temperature Range: -40°C to +125°C

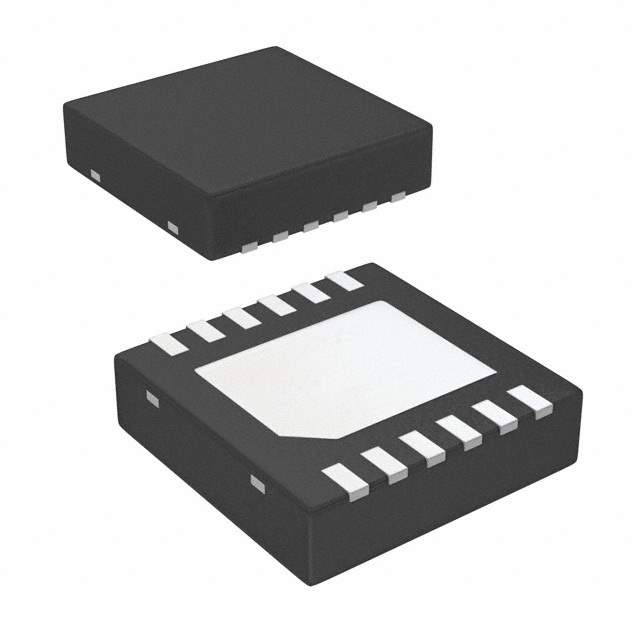

• Packaging: 16-WQFN (3.00x3.00 mm)

The FDC2212DNTT from Texas Instruments is a robust and reliable solution for designers looking to integrate high-precision capacitive sensing into their projects. With its advanced features and versatile application potential, the FDC2212DNTT stands out as a top choice for a wide array of capacitive sensing needs.
