Introducing the DRV8801RTYR Motor Driver from Texas Instruments

The DRV8801RTYR is a versatile and efficient motor driver designed by Texas Instruments (TI), tailored to meet the demanding needs of modern applications. This motor driver is capable of delivering robust performance for driving brushed DC motors with advanced features that make it a top choice for engineers and designers across various industries.

At the heart of the DRV8801RTYR is its ability to provide a continuous drive current of up to 2.8A and an operating voltage range of 8V to 36V, making it suitable for a wide array of DC motors. The device incorporates an H-bridge motor driver, which means it can control the direction of the motor's rotation with ease, allowing for bidirectional control that is essential in many applications such as robotics, industrial automation, and consumer electronics.

One of the standout features of the DRV8801RTYR is its built-in protection systems. The device includes overcurrent, thermal, and undervoltage lockout protection, ensuring reliable operation and safeguarding the motor driver from potential damage caused by abnormal operating conditions. This level of protection is crucial for maintaining the longevity and stability of both the motor and the driver in challenging environments.

The DRV8801RTYR is also designed with simplicity in mind, featuring a simple PWM (Pulse Width Modulation) interface for speed control. This allows designers to easily integrate the motor driver into their systems without the need for complex programming or additional hardware. The PWM signal can be used to regulate the speed of the motor with high precision, providing smooth and efficient operation.

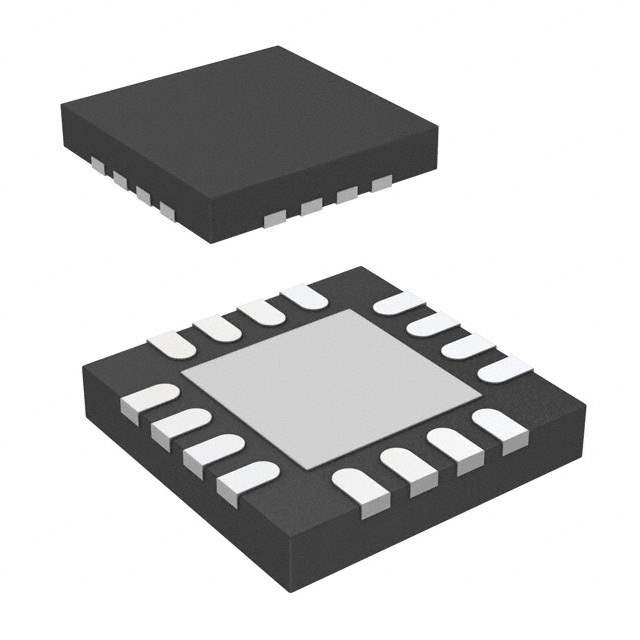

For design flexibility, the DRV8801RTYR comes in a compact QFN package, which is ideal for space-constrained applications. Its small footprint does not compromise its performance or functionality, making it an excellent choice for portable and compact designs.

In summary, the DRV8801RTYR from Texas Instruments is a powerful and dependable motor driver solution that offers a combination of high performance, advanced protection features, and ease of use. With its broad operating voltage range, high current capability, and compact design, it stands out as a versatile component for driving brushed DC motors in a multitude of applications.
