Products specifications

Categories Integrated Circuits (ICs)
Estimated Pruduction Lead Time 34 Weeks
Features - Motor Driver NMOS, PMOS I²C
Manufacturer Texas Instruments
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C (TJ)
Mounting Surface Mount

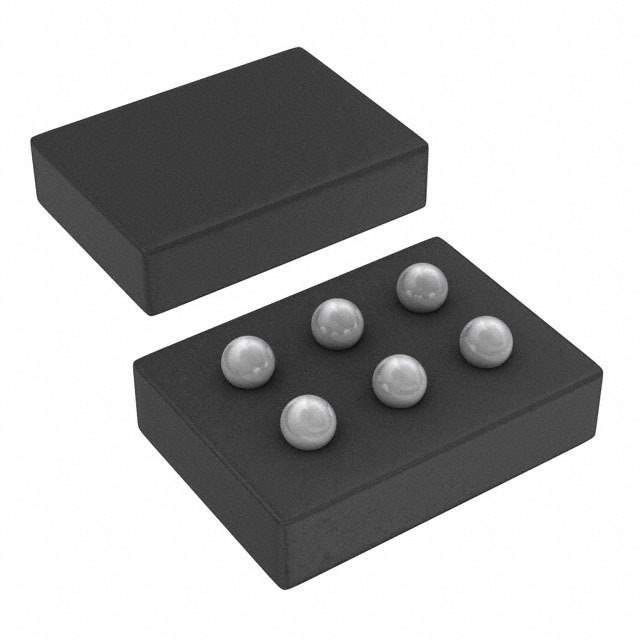

Package 6-XFBGA
Family Name DRV201
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number 296-36439-6, DRV201AYMBR-ND, -296-36439-1, 296-36439-1, -296-36439-1-ND, 296-36439-2
Quantity per package 3000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 869293-DRV201AYMBR
Ultra Librarian 3D Model Ultra Librarian DRV201AYMBR CAD Model

Description

The Texas Instruments DRV201AYMBR is a highly integrated motor driver designed to deliver exceptional performance for a wide range of motor driving applications. This advanced motor driver is ideal for driving brushed DC motors, providing precise control and efficient operation. Its robust design and state-of-the-art technology make it suitable for both industrial and consumer applications.

Key Features

  • High Output Drive Capability: The DRV201AYMBR is capable of delivering high output current, enabling it to drive larger motors with ease.
  • Wide Voltage Range: It operates over a broad voltage range, accommodating various power supplies and ensuring compatibility with diverse systems.
  • Integrated Protection Features: This motor driver includes multiple protection features such as overcurrent, thermal shutdown, and under-voltage lockout, ensuring the longevity and reliability of both the driver and the motor.
  • Low Power Consumption: Designed with power efficiency in mind, the DRV201AYMBR minimizes power loss, making it suitable for battery-powered applications.
  • Easy to Use: With a simple control interface, it allows for straightforward integration into existing designs, reducing development time and complexity.

Applications

The DRV201AYMBR is versatile and can be used in a variety of applications, including:

  • Automated industrial machinery
  • Robotics and automated guided vehicles (AGVs)
  • Consumer electronics
  • Office automation equipment
  • Medical devices and equipment

Quality and Reliability

Texas Instruments is known for its commitment to quality, and the DRV201AYMBR is no exception. It is manufactured to the highest standards, ensuring consistent performance and reliability across a wide range of environmental conditions. With Texas Instruments' reputation for excellence, you can trust the DRV201AYMBR to be a dependable component in your motor control solutions.
