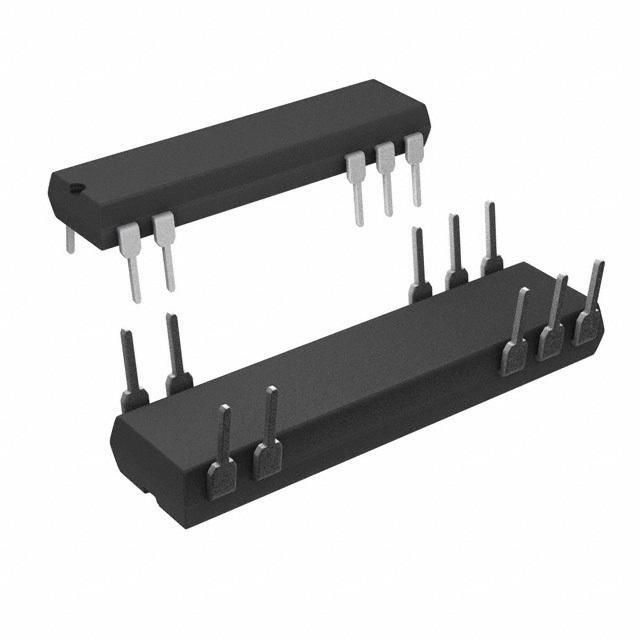

DCR010503P Texas Instruments
Same model may have multiple batches, images only for reference.

DCR010503P

Part No DCR010503P
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description IC REG ISOLATED 3.3V 0.3A 10DIP
Datasheet
DCR010503P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Texas Instruments
Series DCR01
Packaging Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 3.3V
Current - Output (Max) 300mA
Power (Watts) - Manufacture Series 1W
Voltage - Isolation 1kV (1000V)
Applications ITE (Commercial)
Features Remote On/Off, OTP, SCP
Mounting Style Through Hole
Package 18-DIP Module (10 Leads)
Size / Dimension 0.90" L x 0.28" W x 0.21" H (22.9mm x 7.1mm x 5.3mm)
Operating Temperature Range -40°C ~ 85°C
Power (Watts) - Max 1W
Win Source Part Number 013874-DCR010503P
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian DCR010503P CAD Model

Description

Product Overview

The DCR010503P is a highly compact DC-DC converter that offers precise conversion, essential for sensitive and critical applications. Its advanced design and features deliver remarkable performance consistency.

Applications

  • Test and Measurement Equipment
  • Battery Management Systems
  • HVAC Control Units
  • Precision Instrumentation

Features and Benefits

  • Precision Output Voltage: Ensures consistent and accurate voltage delivery.
  • Enhanced Thermal Management: Prevents overheating, optimizing operation.
  • Reduced Size: Ultra-compact for easy implementation in miniaturized systems.
  • Comprehensive Safeguards: Protects against voltage and current discrepancies.

Additional Details

The DCR010503P is a quintessential option for projects demanding ultra-precise power management. Its durability and efficiency make it a valuable asset in maintaining high operational standards.
