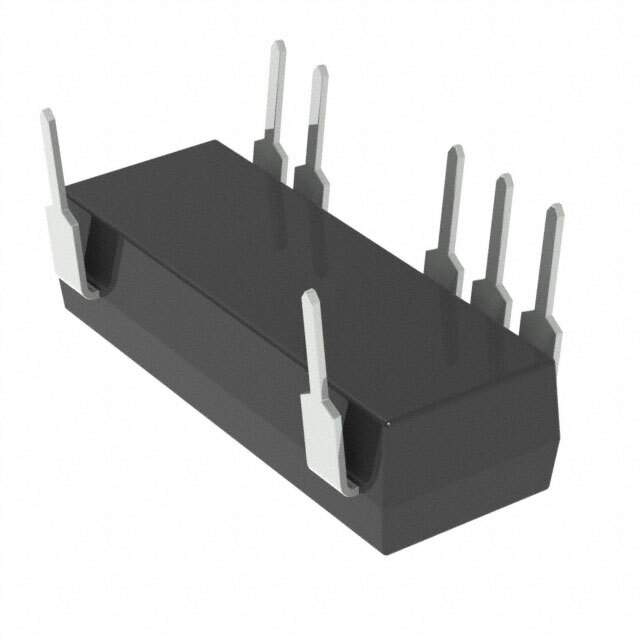

DCP020505P Real Image
Same model may have multiple batches, images only for reference.

DCP020505P

Part No DCP020505P
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description IC REG ISOLATED 5V 0.4A 7DIP
Datasheet
DCP020505P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Texas Instruments
Series DCP02
Packaging Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Current - Output (Max) 400mA
Power (Watts) - Manufacture Series 2W
Voltage - Isolation 1kV (1000V)
Applications ITE (Commercial)
Features OTP
Mounting Style Through Hole
Package 14-DIP (0.300", 7.62mm) (7 Leads)
Size / Dimension 0.78" L x 0.33" W x 0.21" H (19.7mm x 8.3mm x 5.3mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 80%
Power (Watts) - Max 90mW
Win Source Part Number 013856-DCP020505P
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian DCP020505P CAD Model

Description

Description

The DCP020505P is a high-performance, isolated DC-DC converter, suitable for a wide range of industrial and electronic applications. It is designed to provide dual-output voltage solutions with high precision and efficiency, making it an ideal choice for power regulation tasks.

Features and Benefits

  • High efficiency up to 80%
  • Ultra-low isolation capacitance
  • Short-circuit and over-temperature protection
  • Compact DIP packaging for easy integration
  • Wide operating temperature range from -40°C to 85°C

Applications

  • Industrial control systems
  • Communication devices
  • Embedded systems
  • Power management projects
  • Remote sensing applications

Additional Details

The compact design and robust features of the DCP020505P ensure reliable performance in challenging environments. Its advanced protection mechanisms make it a reliable component for long-term applications.
