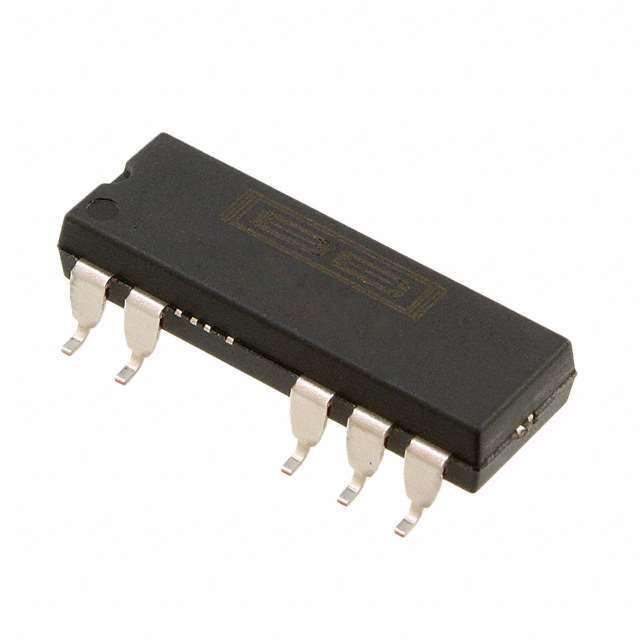

DCP010505DBP-U/700 Real Image
Same model may have multiple batches, images only for reference.

DCP010505DBP-U/700

Part No DCP010505DBP-U/700
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description IC REG ISOLATED +/-5V 0.1A 7SOP
Datasheet
DCP010505DBP-U/700 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Texas Instruments
Series DCP01B
Packaging Reel(TR)
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 100mA, 100mA
Power (Watts) - Manufacture Series 1W
Voltage - Isolation 1kV (1000V)
Applications ITE (Commercial)
Features OTP, SCP
Mounting Style SMD/SMT
Package 14-SMD Module (7 Leads), Gull Wing
Size / Dimension 0.78" L x 0.33" W x 0.21" H (19.7mm x 8.3mm x 5.3mm)
Operating Temperature Range -40°C ~ 100°C
Efficiency 81%
Power (Watts) - Max 220mW
Win Source Part Number 013846-DCP010505DBP-U/700
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DCP010505DBP-U/700 CAD Model

Description

Product Overview

The DCP010505DBP-U/700 is an advanced DC-DC converter specially designed for applications requiring stable voltage with enhanced isolation features. Its design minimizes electromagnetic interference for sensitive electronics.

Features and Benefits

  • Enhanced magnetic interference reduction
  • High power density for efficient space utilization
  • Precise voltage regulation
  • Wide operational temperature range

Applications and Projects

  • Data communication modules
  • High-end consumer electronics
  • Robotic control systems
  • Portable instrumentation
  • Electric vehicle subsystems

This product is tailored for applications where performance and reliability are critically prioritized.
