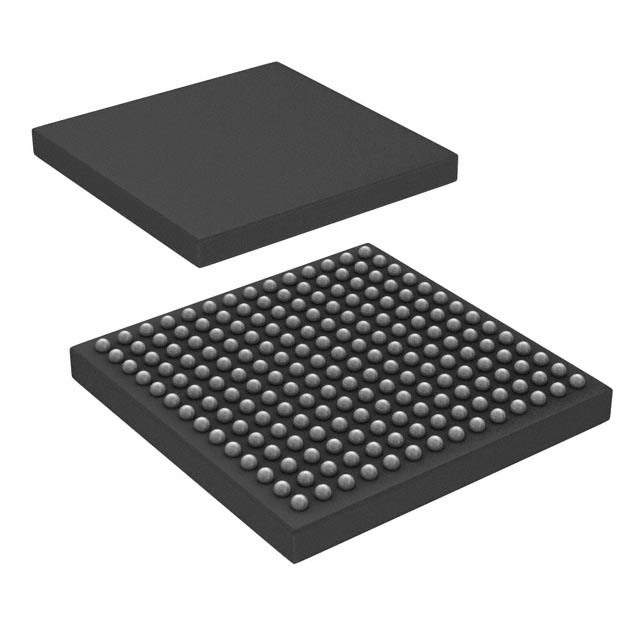

DAC34SH84IZAYR - Texas Instruments Digital-to-Analog Converter

The DAC34SH84IZAYR is a high-performance, quad-channel digital-to-analog converter (DAC) from the renowned manufacturer, Texas Instruments. This integrated circuit is designed to cater to the demanding needs of modern communication systems, test equipment, and data acquisition platforms that require high-speed data conversion with exceptional accuracy and stability.

Key Features

• High-Speed Performance: With a maximum sampling rate of up to 1.5 GSPS (Giga-Samples Per Second), the DAC34SH84IZAYR is capable of handling high-throughput applications with ease, making it ideal for advanced signal generation in both wired and wireless communication systems.
• Quad-Channel Configuration: This DAC features four independent channels that allow for multiple signal outputs simultaneously, providing flexibility and support for complex signal processing tasks.
• High Resolution: The 16-bit resolution of the DAC34SH84IZAYR ensures fine granularity in the digital-to-analog conversion process, resulting in precise and detailed analog output signals.
• Integrated Interpolation Filters: It includes built-in 2x, 4x, and 8x interpolation filters, which reduce the load on the external digital signal processing components by effectively increasing the input data rate.
• JESD204B Support: The device supports the JESD204B serial interface, which simplifies board design and layout by reducing the number of data input lines required for high-speed data transfer.
• Low Power Consumption: Despite its high-speed capabilities, the DAC34SH84IZAYR is designed for efficient power usage, which is crucial for temperature-sensitive applications or when power conservation is paramount.

Applications

The DAC34SH84IZAYR is versatile and can be used in a variety of applications, including:

• Wireless Infrastructure (e.g., base stations for 3G, 4G, and emerging 5G networks)
• High-Speed Data Acquisition Systems
• Direct Digital Synthesis (DDS) for signal generators
• Medical Imaging Equipment
• Test and Measurement Instruments

Overall, the DAC34SH84IZAYR from Texas Instruments represents a blend of high-speed performance, precision, and versatility, making it an excellent choice for designers looking to push the boundaries of digital-to-analog conversion in their advanced electronic systems.
