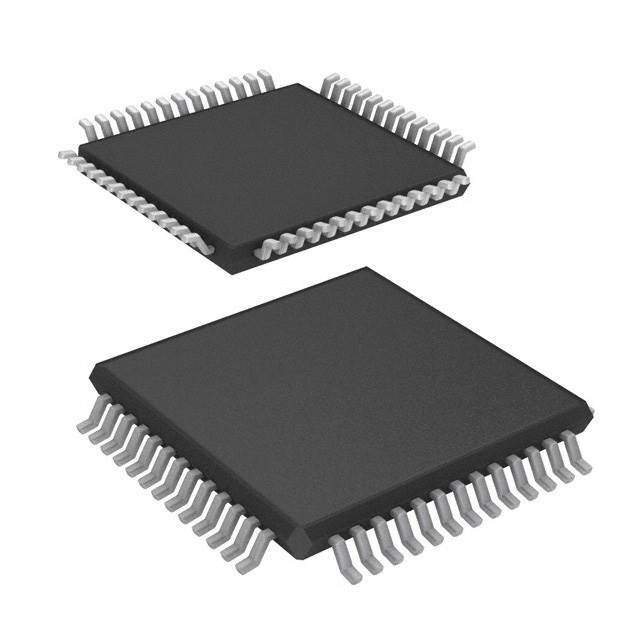

The Texas Instruments CDC2582PAH is a high-performance, low-skew, dual 1-to-4 clock buffer designed to distribute high-speed signals in clock distribution applications. With an operating voltage range of 2.5V to 3.3V, this clock buffer is suitable for a variety of digital systems where stable and reliable clock distribution is critical.

Key Features

• Low Skew: The CDC2582PAH offers extremely low-output skew, ensuring that clock signals are distributed with minimal timing differences.
• High-Speed Operation: Capable of handling clock frequencies up to 200MHz, this device is ideal for high-performance systems.
• Multiple Outputs: With dual 1-to-4 configuration, the buffer provides a total of eight outputs, allowing for broad distribution of the clock signal.
• Flexible Power Supply: The device supports a wide range of power supplies, from 2.5V to 3.3V, making it versatile for use in various applications.
• Temperature Range: It operates over an industrial temperature range, ensuring reliability in diverse operating conditions.

Applications

The CDC2582PAH is well-suited for a range of applications where precise clock distribution is necessary. These include:

• Networking equipment such as routers, switches, and hubs
• Telecommunication infrastructure
• High-performance computing systems
• Data storage and servers
• Industrial control systems

Quality and Reliability

Texas Instruments is renowned for its commitment to quality and reliability, and the CDC2582PAH is no exception. It is designed to meet the stringent requirements of the most demanding applications, ensuring that your systems run smoothly and efficiently.

Ordering Information

For detailed product information, pricing, and ordering, please visit the Texas Instruments website or contact an authorized distributor. Ensure that the part number CDC2582PAH is referenced to get the specific device discussed here.
